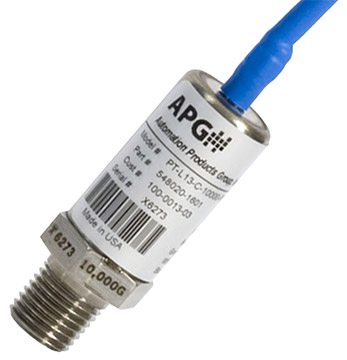

APG PT-L9/L13 Pressure Transducers
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressure range: Up to 10,000 psi
- Accuracy: B.F.S.L. ≤ 0.25% of full scale, NIST up to ±0.1% available in select ranges
- Output: 10, 3, 5 mV/V
- Cost effective
- Temperature compensated from -40 to 180° F (-40 to 82° C)
- High overpressure capability
- Supply Voltage: 10 VDC
- Material: 15-5, 17-4, or 316L SS
- Reverse polarity
The PT-L9/L13/L14 pressure transducers are millivolt output transducers for all general purpose measurements where a cost-effective, high reliability unit is required. The PT-L9/L13/L14 transducers lack any electronics for programming, simply producing an un-amplified millivolt output. This results in a super compact transducer that fits just about anywhere.
The PT-L9/L13/L14 pressure transducers offer ranges from vacuum to 10,000 psi with a basic accuracy of ±0.25% or an enhanced ±0.1% accuracy. All models feature a high burst pressure. With your choice of 316L, 15-5, or 17-4 stainless steel, these pressure sensors are built for greater durability against dings and bumps with high chemical compatibility and solid construction.
