Ashcroft E2G Pressure Transducer
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- ±0.25%, ±0.5% or ±1.00% of span accuracy
- -40°F to 257°F (-40°C to 125°C) operating temperature
- 5 to 20,000 psi, 0 to 500 psi absolute pressure range
- 75g peak shock, 10g RMS 20-20,000Hz vibration resistance
- 316L, 17-4H or A286 stainless steel diaphragm material
- 316L stainless steel process connection
- IP66, IP67 or IP69K ingress rating
- CE, RoHS

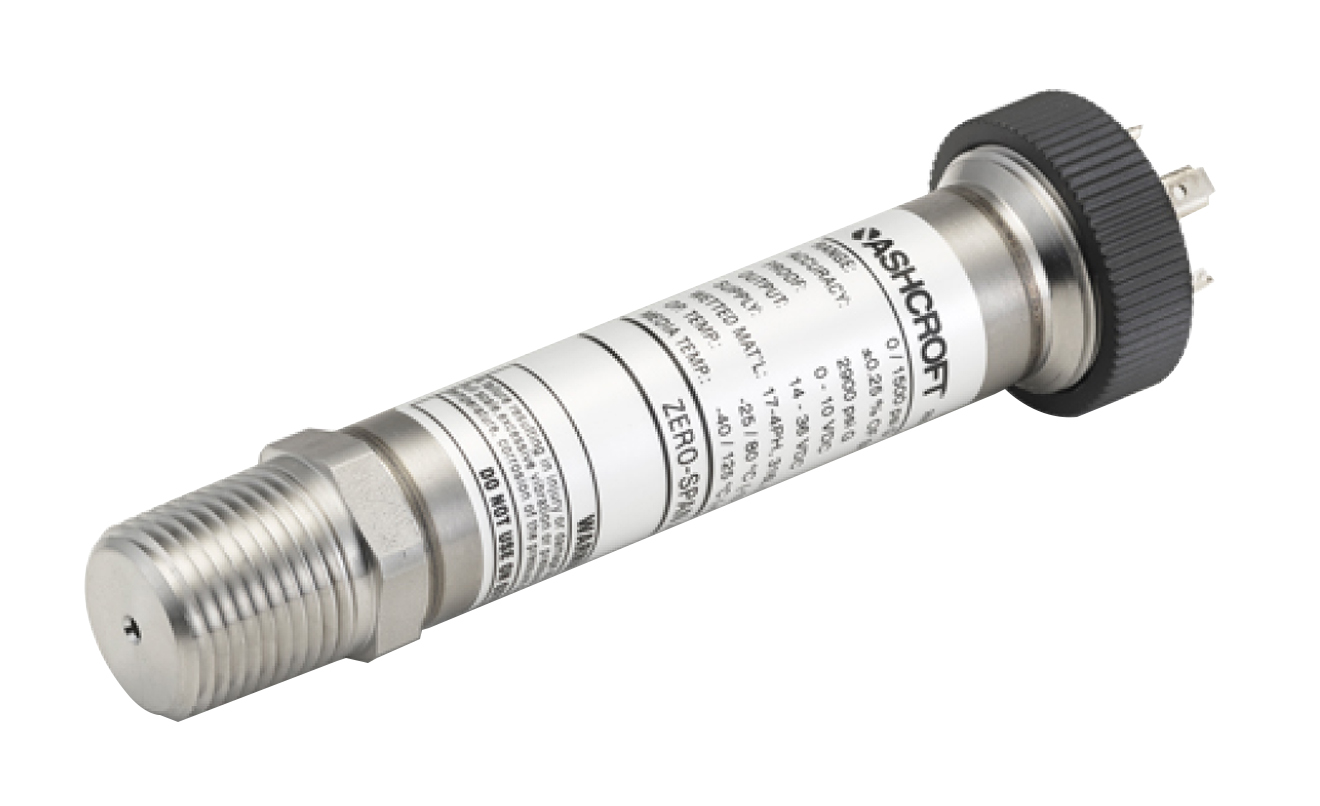

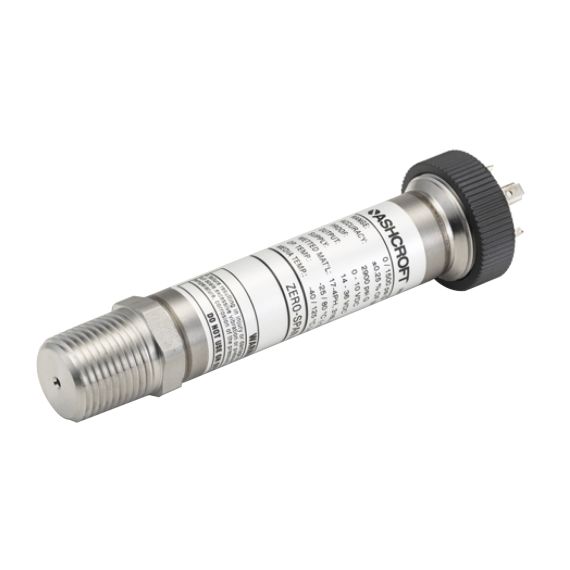

The Ashcroft® E2G general industrial pressure transducer is the optimal choice for a rugged, precise and repeatable solution for measurement requirements that are needed on a wide array of applications. It's designed with 316L stainless steel housing and is available with a wide selection of electrical terminations, process connections and analog outputs, to accommodate nearly any customized application.
Some key features of the E2G are the sensor and pressure connections; standard offset and span adjustment; customized configurations; wide assortment of analog outputs, pressure and electrical connections; and choice of cable length
