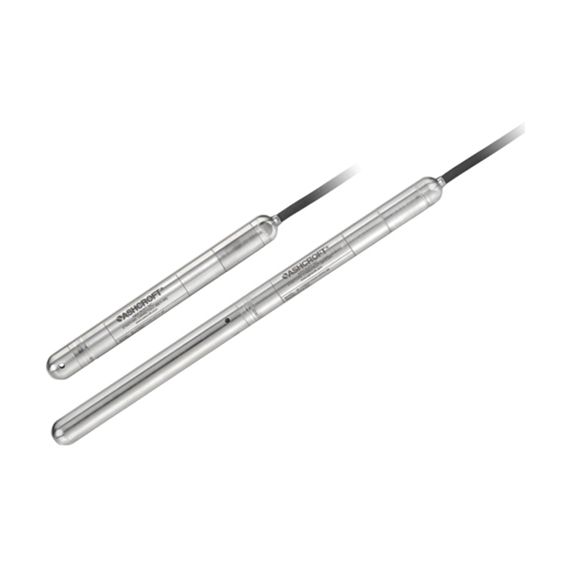

Ashcroft SL17 Submersible Pressure Transmitter
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 1.5 to 300 psi ranges available (or equivalent units)
- Accuracy:
- ±0.25% for ranges greater than 1.5 psi
- ±0.5% for 1.5 psi
- Psi, bar, ftH20, mH20 units of measure
- 17mm diameter
- 316L SS construction
- IP68 NEMA 6P housing
- 2:1 maximum turn down ratio
- 4-20mA 2-wire output
- Designed to fit narrow bore applications
- 14 to 140°F (-20 to 60°C)
The Ashcroft SL17 submersible pressure transmitter is a highly reliable platform for accurate pressure, level control, and monitoring. It is ideal for level applications, particularly in situations where size or chemical compatibilities are an issue. The SL17 utilizes piezo-resistive technology (PRT) that is known for its proven reliability and stability. Notably, these transmitters can offer all ranges equivalent from 1.5 psig through 300 psig while all units of measure and cable lengths are customer-defined for individualized specifications. Typical applications for the SL17 include level (groundwater and bore), wastewater, and tank level measurement.
