Features
- Pressures from vacuum to 40,000 psi
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (≤2 psi and >10,000 psi)
- ≤ ±1% BFSL (Millivolt output signal)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 60,000 psi (whichever is less) burst pressure
- -40 to 185°F (-40 to 85°C) operating temperature
- -40 to 248°F (-40 to 120°C) media temperature
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP65 rating

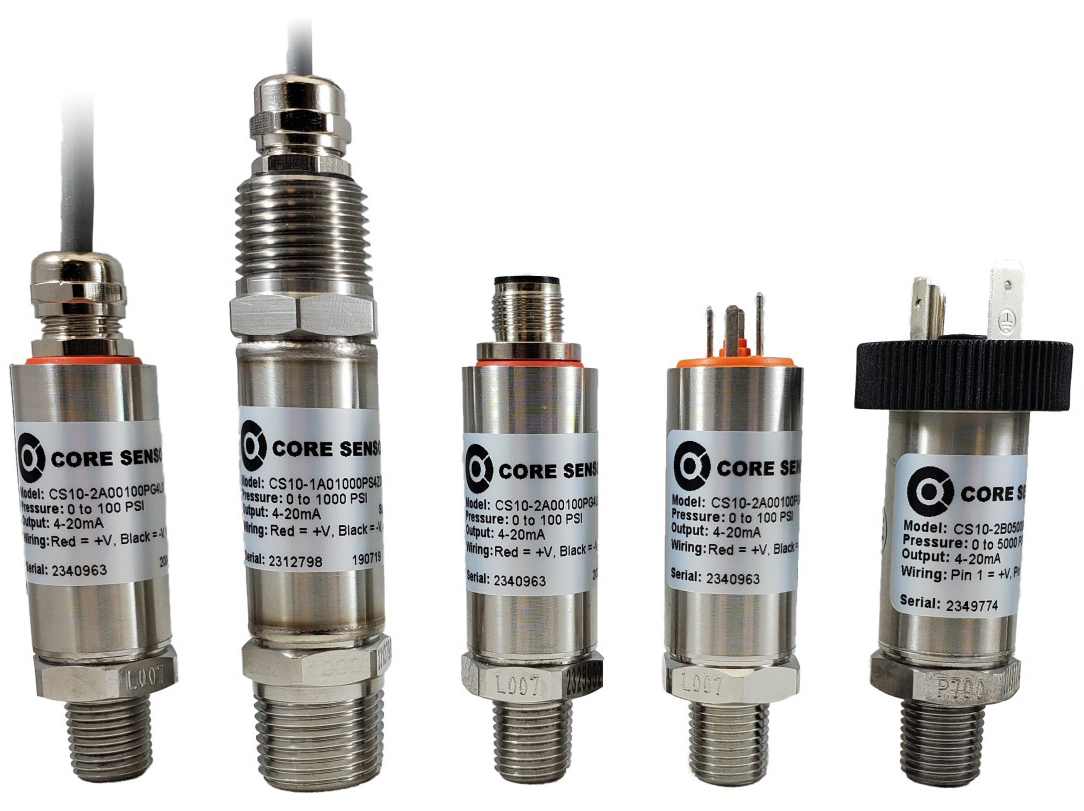

The Core Sensors CS10 industrial pressure transducer uses MEMS silicon strain gages mounted to a stainless steel or nickel alloy sensing element. The ASIC electronics offer analog voltage or 4-20mA loop powered output signals. Various process connections are available in 17-4PH, 316L or nickel alloy including Hastelloy C276 and Inconel 718. Electrical connections include cable or various integral connectors. Semi-custom and custom designs are available.
Core Sensors CS10 Industrial Pressure Transducer Applications
- Water pressure monitoring
- Hydraulic and pneumatic equipment
- HVAC/R controls
- Hydrogen (316L SS only)
- Building controls
