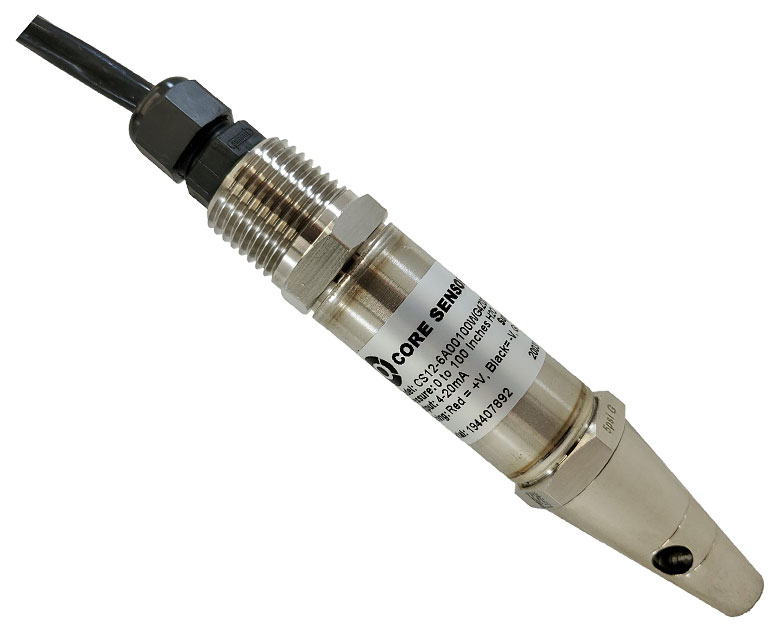

Core Sensors CS12 Submersible Pressure Transducer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressures from 1 to 100 psi gauge
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±0.25% of full scale stability
- 50 million pressure cycles
- 2x minimum overpressure
- 5x or 500 psi (whichever is less) burst pressure
- -40 to 185°F (-40 to 85°C) operating temperature
- 32 to 131°F (0 to 55°C) compensated temperature
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP68 rating
The Core Sensors CS12 submersible pressure transducer is designed for liquid level measurement applications. The CS12 features a 316L stainless steel diaphragm and oil-filled sensor element. Precision welds and a high-strength cable gland prevent liquids from entering the electronics. A wide diameter vent tube quickly equalizes the barometric pressure within the sensor body to ensure accurate level measurements. The sensor also offers nylon strain relief, a Buna-N form seal, and a Viton o-ring.
The CS12 is available in various output signals including 4-20mA loop powered for long distance transmissions and voltage outputs for low-power, low-current consumption. Pressure ranges higher than 100 psi are available for non-submersible applications.
Core Sensors CS12 Submersible Pressure Transducer Applications
- Fuel tank level measurement
- Ballast tanks
- Flood monitoring
- Depth measurement
