Features
- Differential pressures up to 300 psi
- Bi-directional ranges available
- 500 psi max line pressure
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±0.25% of full scale stability
- 4 million pressure cycles
- 2x or 500 psi (whichever is less) overpressure
- 3x rated differential pressure burst pressure
- -40 to 221°F (-40 to 105°C) operating temperature
- 32 to 131°F (0 to 55°C) compensated temperature
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP65 rating

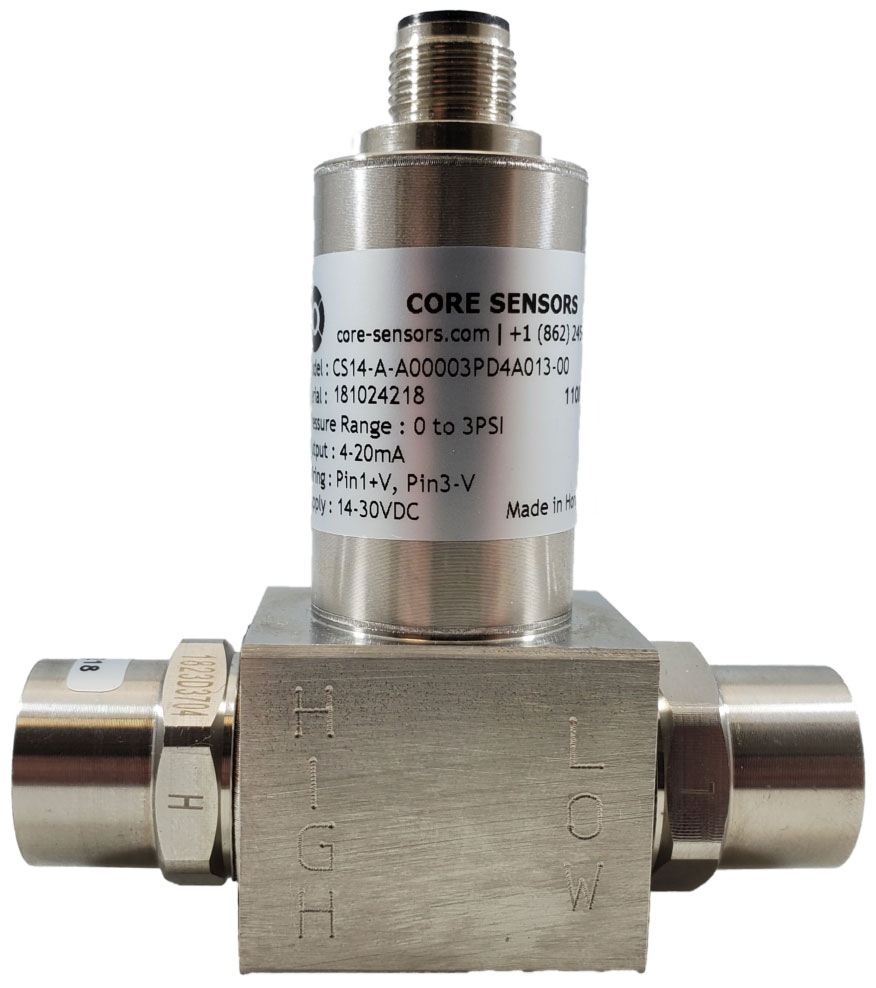

The Core Sensors CS14 differential pressure transducer features a 316L SS oil-filled sensor element that provides excellent stability over a wide operating temperature range and offers corrosion resistance against various liquids and gases. The CS14's compact design allows measurement in confined spaces. Configurable options include differential pressure ranges up to 300 psi, various voltage and 4-20mA loop-powered output signals and both male and female 1/4-inch NPT process connections.
Core Sensors CS14 Differential Pressure Transducer Applications
- Filtration
- Tank level monitoring
- Cryogenic bulk tank level measurement
