Features
- Pressures from 50 to 30,000 psi
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (>10,000 psi)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 60,000 psi (whichever is less) burst pressure
- Operating temperature:
- -40 to 176°F (-40 to 80°C)
- -4 to 176°F (-20 to 80°C) (electrical connection option F)
- Media temperature:
- -40 to 257°F (-40 to 125°C)
- -40 to 221°F (-40 to 105°C) (electrical connection option F)
- ≤ ±1% of full scale TC zero
- ≤ ±1% of full scale TC span
- EMI/RFI protection
- IP65 rating

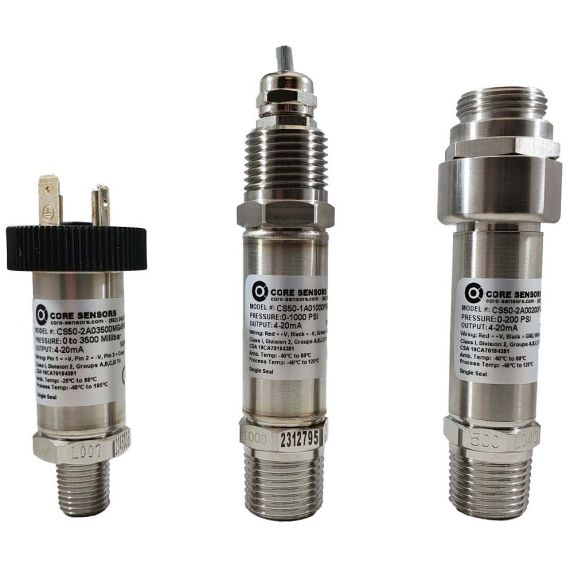

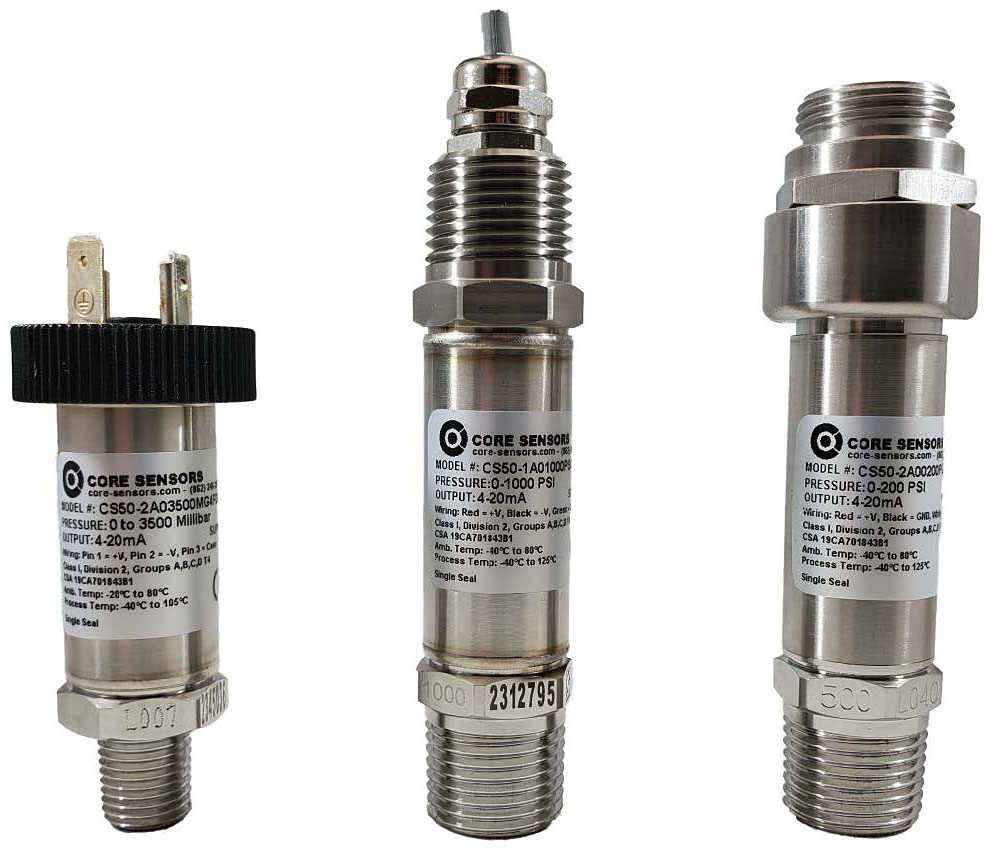

The Core Sensors CS50 non-incendive pressure transducer is designed for use in Class I, Division 2 locations. The CS50 features an all-welded stainless steel construction for a minimum IP65 rating, a one-piece design, reverse polarity and EMI protection. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen compression and storage, and process control instrumentation.
Core Sensors CS50 Non-Incendive Pressure Transducer Applications
- Natural gas compression
- Oil exploration
- Process controls
- Hydrogen
