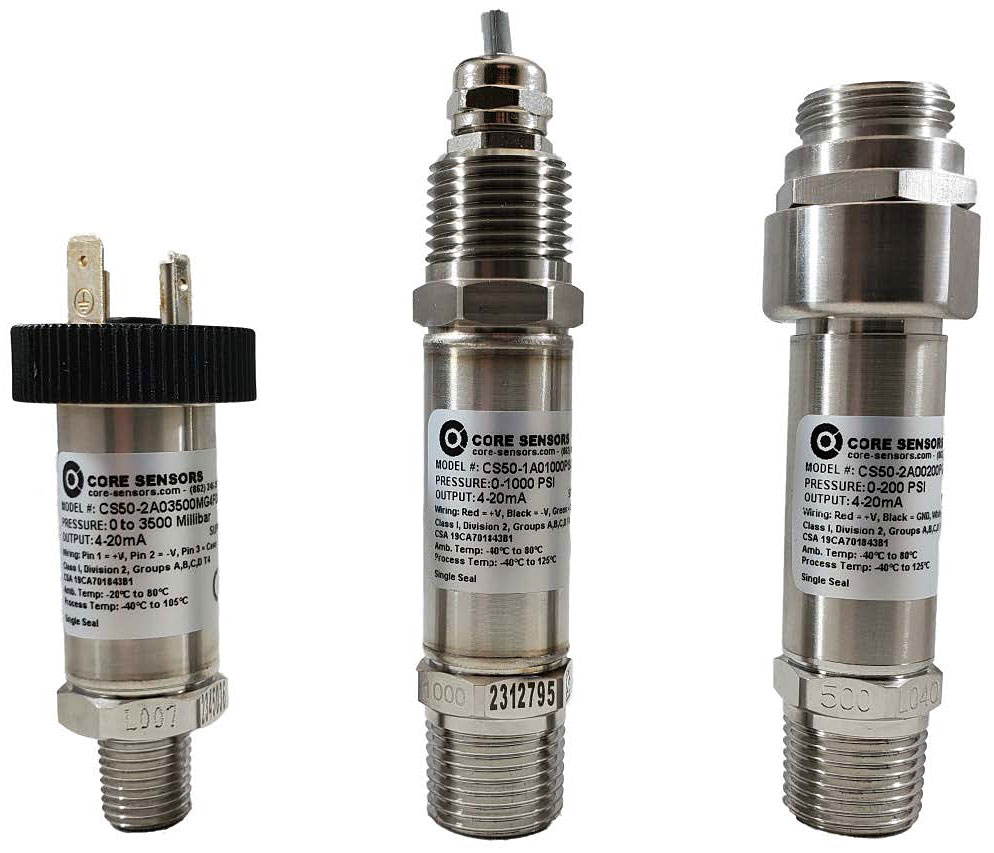

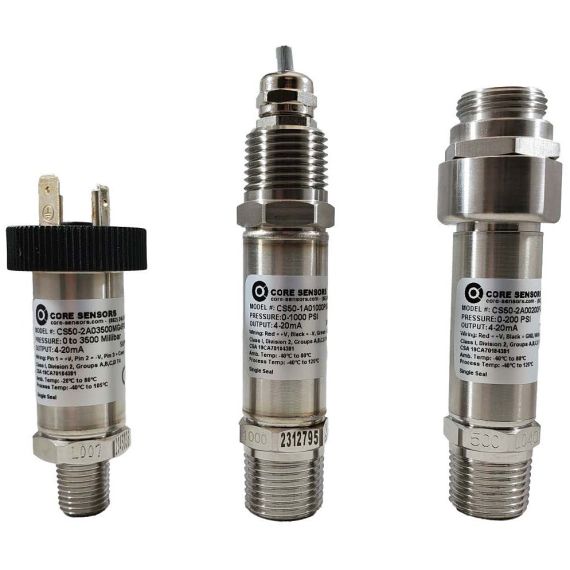

Core Sensors CS51 Non-Incendive Low Pressure Transducer
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressures from 1 to 49 psi
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 245 psi (whichever is less) burst pressure
- Operating temperature:
- -40 to 176°F (-40 to 80°C)
- -4 to 176°F (-20 to 80°C) (electrical connection option F)
- Media temperature:
- -40 to 257°F (-40 to 125°C)
- -40 to 221°F (-40 to 105°C) (electrical connection option F)
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP65 rating
The Core Sensors CS51 non-incendive low pressure transducer is designed for measurements of liquids and gases in Class 1, Division 2 locations. It features reverse polarity, EMI protection and an all-welded stainless steel construction for a minimum IP65 rating. The CS51 is an excellent solution for operation in some of the harshest conditions.
Core Sensors CS51 Non-Incendive Low Pressure Transducer Applications
- Natural gas compression
- Vapor recovery
- Process controls
