Core Sensors CS60 Explosion-Proof Pressure Transducer
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- -40 to 185°F operating temperature
- -40 to 248°F media temperature
- 5 to 148°F compensated temperature
- -40 to 257°F storage temperature
- 4-20mA outputs
- 10 to 28VDC excitation
- Current consumption:
- Current: 20mA, typical
- Voltage: <10mA
- Output load:
- Current: 0 to 800 Ohms @ 10 to 28VDC
- Voltage: 5K Ohms, min
- Accuracy @ 77°F (25°C):
- ≤ ± 0.25% BFSL
- ≤ ± 0.5% BFSL (>10,000 PSI)
- IP66 rated

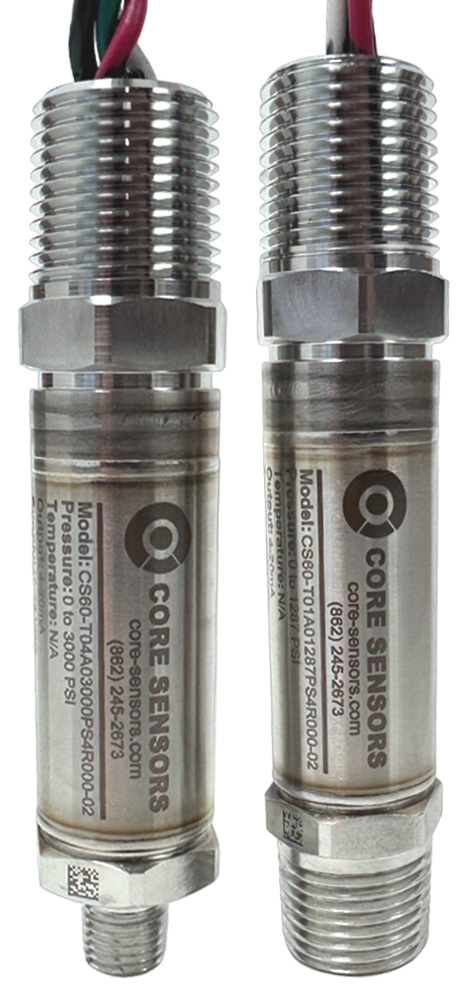

The Core Sensors CS60 Explosion-Proof Pressure Transducer is designed for use in Class I, Division 1 explosion-proof locations. The CS60 features an all-welded, factory-sealed stainless steel construction, offering a minimum IP66 rating. A 1/2" Male NPT conduit fitting with 2 meters of 20AWG flying leads is standard, allowing for easy installation of rigid metal conduit. The CS60's wide operating temperature range and configurable design allow it to operate in extreme conditions, and available output signals include 1 to 5V and 4-20mA loop powered.
Applications
- Well head pressure measurement
- Natural gas compressors
- Marine and offshore equipment
- Oil exploration
- Natural gas compression
- Pipeline equipment
- Power generation
