Features
- Pressures from 50 to 30,000 psi
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (>10,000 psi)
- ≤ ±1% BFSL (Millivolt output signal)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 60,000 psi (whichever is less) burst pressure
- Operating temperature:
- -40 to 176°F (-40 to 80°C)
- -4 to 176°F (-20 to 80°C) (electrical connection option F)
- Media temperature:
- -40 to 257°F (-40 to 125°C)
- -40 to 221°F (-40 to 105°C) (electrical connection option F)
- ≤ ±1% of full scale TC zero
- ≤ ±1% of full scale TC span
- EMI/RFI protection
- IP65 rating

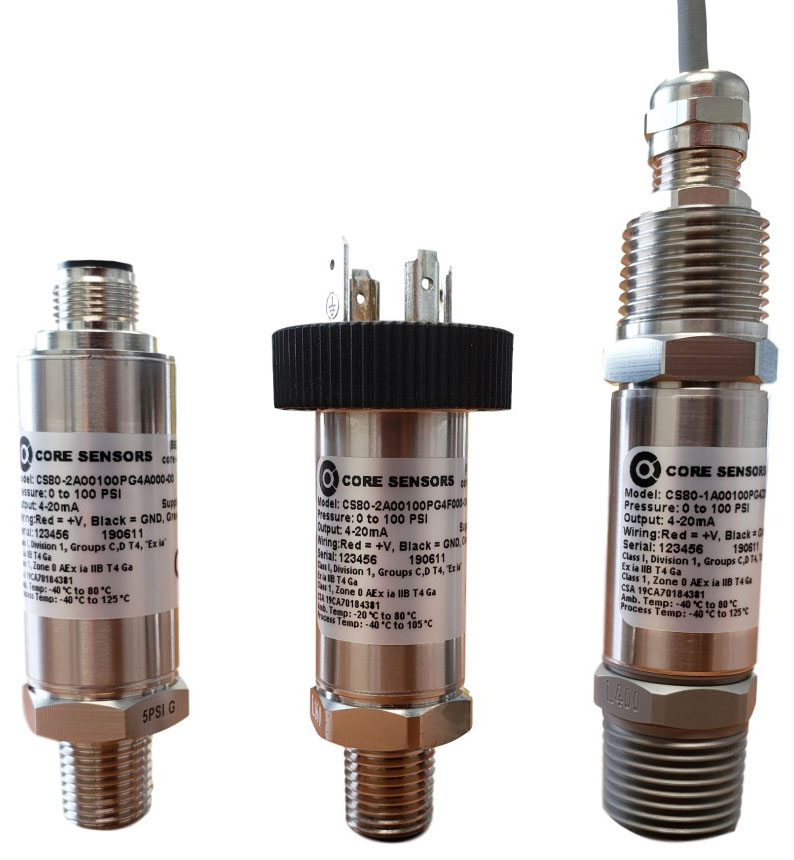

The Core Sensors CS80 intrinsically safe pressure transducer features all-welded, stainless steel construction for a minimum IP65 rating. The one-piece design and a wide range of configurable options make the CS80 a versatile pressure transducer that can be designed to operate in some of the harshest conditions. The sensor also offers reverse polarity and EMI protection. Low power outputs are available that can operate with 3-5VDC of unregulated power to extend battery life in remote applications.
Core Sensors CS80 Intrinsically Safe Pressure Transducer Applications
- Natural gas compression
- Oil exploration
- Process controls
