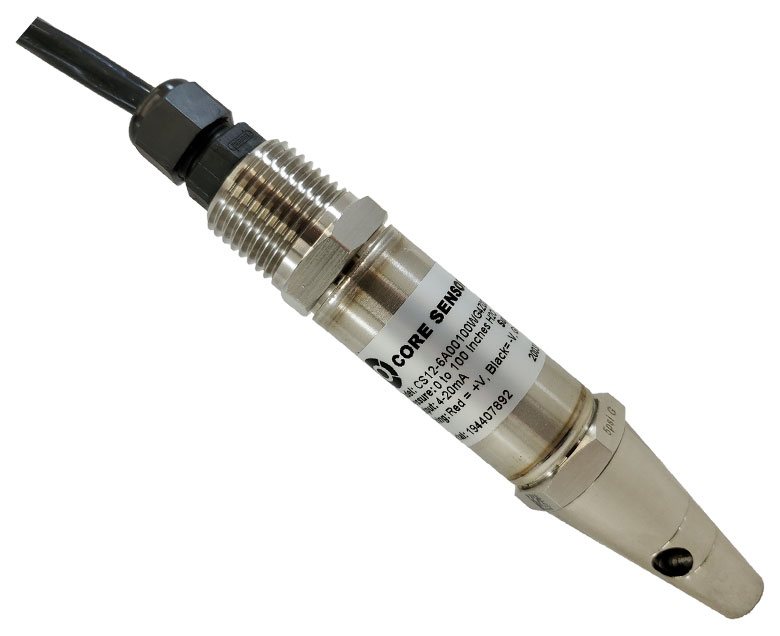

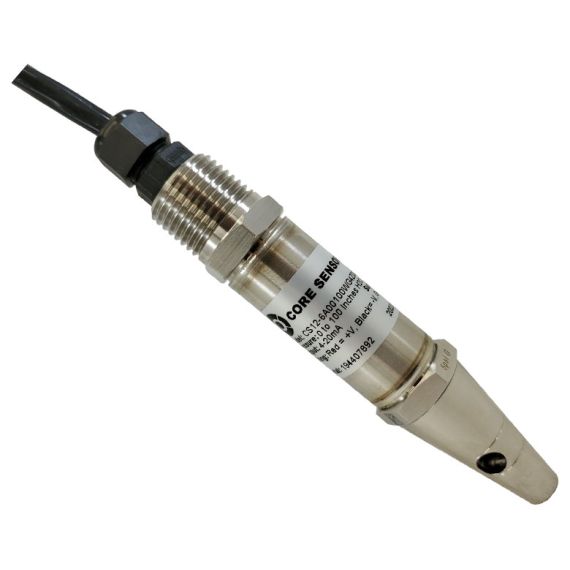

Core Sensors CS82 Intrinsically Safe Submersible Pressure Transducer
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressures from 1 to 50 psi gauge
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 250 psi (whichever is less) burst pressure
- -40 to 176°F (-40 to 80°C) operating temperature
- 32 to 131°F (0 to 55°C) compensated temperature
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP68 rating
The CS82 intrinsically safe submersible pressure transducer features stainless steel construction and an extruded ETFE cable jacket for compatibility with a wide variety of liquids. Precision welds and a high-strength nylon strain relief prevent liquids from entering the electronics, while a wide diameter vent tube quickly equalizes the barometric pressure within the sensor body to ensure accurate level measurements. The CS82 is available in various output signals including 4-20mA loop-powered for long-distance transmissions and voltage outputs for low-power and low-current consumption applications.
Core Sensors CS82 Intrinsically Safe Submersible Pressure Transducer Applications
- Fuel tanks
- Ballast tanks
- Flood monitoring
