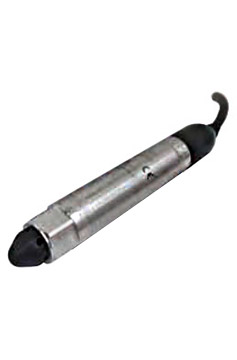

Druck TERPS RPS/DPS 8200/8300 Pressure Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Media isolated construction
- Suitable for harsh environments (sea water or sour gas)
- Ranges up to 70 bar (1000 psi)
- High Stability, ±100 ppm FS/year
- High precision 0.02% standard; (0.01% option)
- Multiple output configurations
- TTL and Diode
- RS-232 and RS-485
- 1.5X FS over pressure & 2.0X FS sensor failure pressure
- LabVIEW driver available for TERPS DPS versions
The Druck TERPS RPS/DPS 8200/8300 Pressure Sensor is the first product to incorporate the new TERPS technology. TERPS is a resonant silicon pressure sensor technology platform that provides an order of magnitude greater accuracy and stability than current pressure measurement technologies available. The new TERPS technology also extends the pressure range capability to high pressures and by incorporating true pressure media isolation greatly improves its suitability for use in harsh environments.
By packaging TERPS technology in Hastelloy C276, the RPS/DPS 8200/8300 allows for use in harsh corrosive media such as sea water, or sour gas. The combination of the power of the TERPS technology and the quality, reliability and flexibility of the RPS/DPS 8000 Series offer a truly unique solution for high accuracy and high stability pressure measurement requirements.
Applications for the 8200/8300 include:
- Industrial
- Aerospace
- Oil and gas
- Research environment
