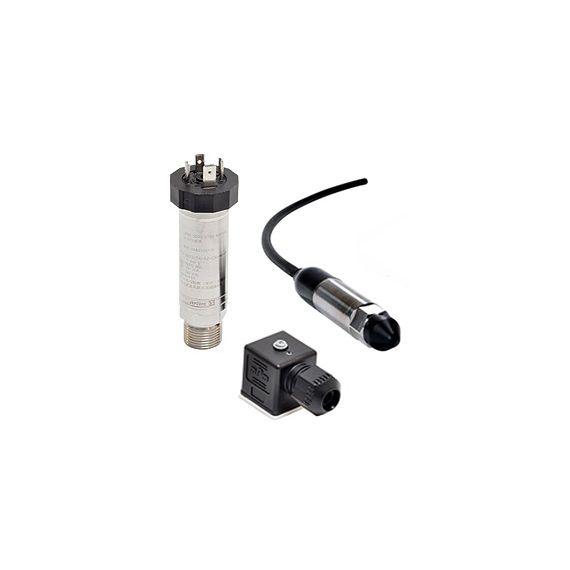

Druck UNIK 5600 / 5700 Pressure Sensor Platform
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Ranges from 70 mbar (1 psi) to 700 bar (10,000 psi)
- Accuracy to ±0.04% full scale
- Stainless steel or titanium options
- Frequency response to 3.5 kHz
- High over pressure capability
- Intrinsically safe hazardous area certification
- 4-20mA output
- Operating temp: -40 to 176°F (-40 to 80°C)
- DNV marine approval
The Druck UNIK 5600/5700 Pressure Sensor Platform carries marine certification for most zones on-board ship, as well as Intrinsically Safe certifications. Marine approval means UNIK 5000 complies with International standards, regulations and Marine Law. The use of Druck silicon technology and analog circuitry enables best in class performance for stability, low power and high frequency response. The platform enables you to build up your own sensor to match your precise needs.
With 40 years of pressure measurement experience, our field-proven Druck silicon technology is at the heart of the new platform, resulting in a range of high quality, high stability pressure sensors.
Custom-built from standard components, manufacturing sensors to your requirement is fast and simple; each UNIK 5000 is a "bespoke" pressure sensing solution, but with the short lead times and competitive pricing you would expect from standard products.
Custom pressure ranges and cable lengths are available upon request. Please contact us for details.
