Features
- Gauge and absolute pressure ranges
- As low as 0 to 51 psi (0 to 3.5 bar)
- As high as 0 to 10,000 psi (0 to 700 bar)
- ±0.04 FS BSL accuracy option available
- -40 to 212°F (-40 to 100°C) operating temp
- Frequency response to 3.5 kHz
- 316L stainless steel construction
- Hastelloy and stainless steel wetted parts
- High over pressure capability

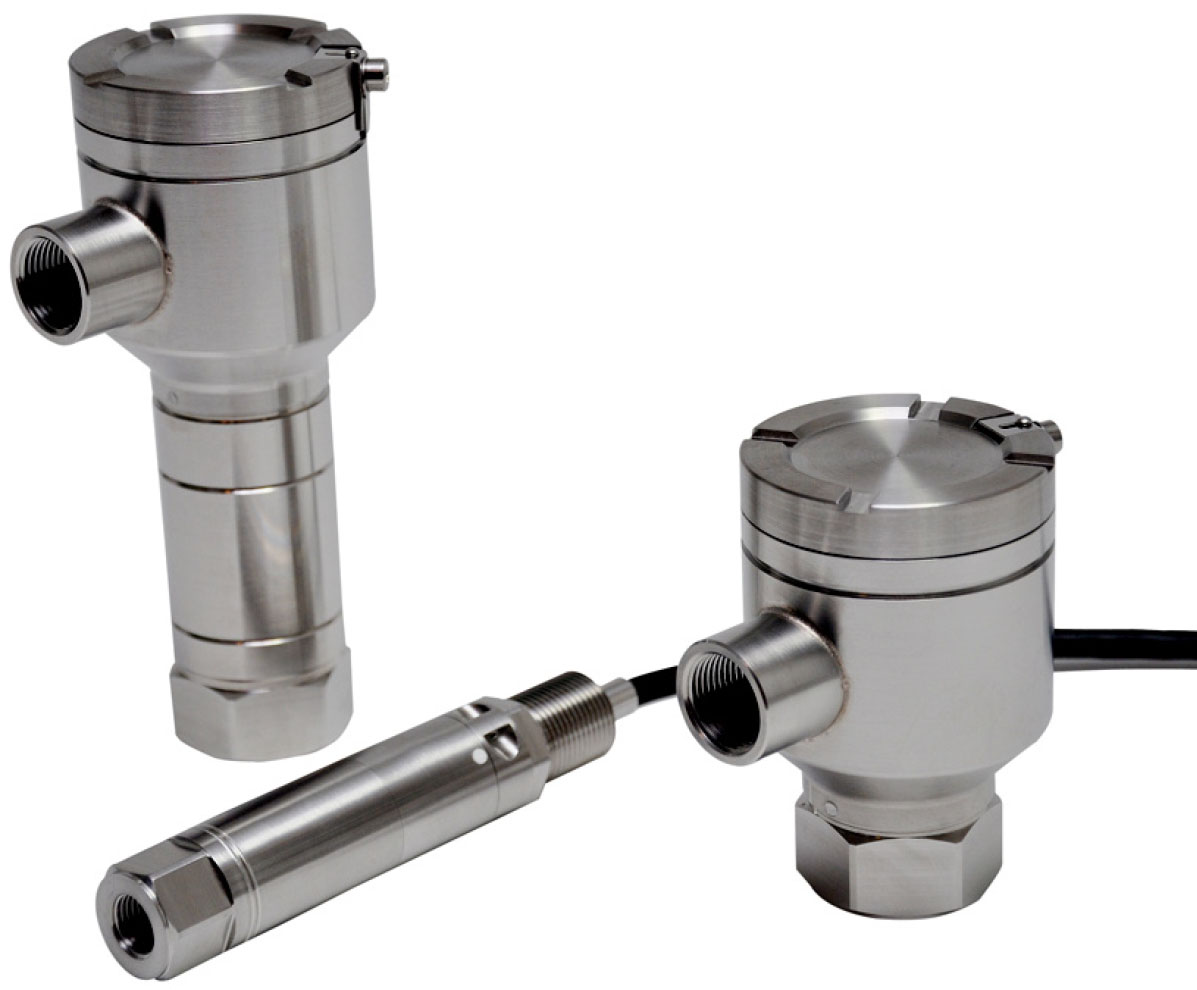

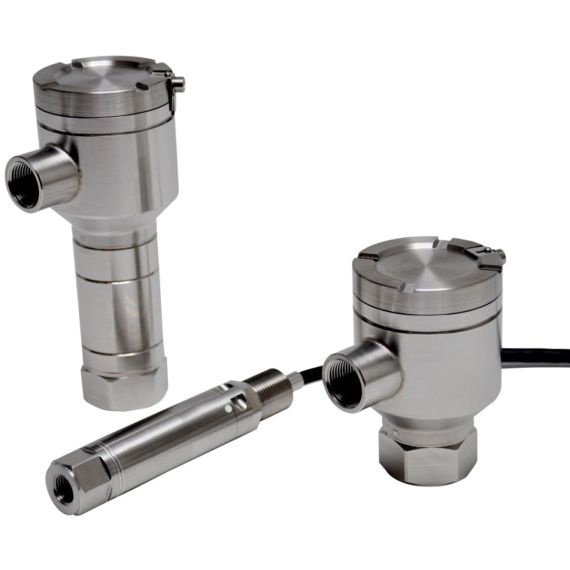

The Druck UNIK 5800 / 5900 pressure sensing platforms are compact and rugged versions of the high performance UNIK 5000 pressure sensing platform offering both flameproof/ explosion-proof or dust ignition protection by enclosure capability as required. They provide a lightweight and cost effective alternative to pressure gauges and switches in process and in oil and gas industry applications.
With 35 years of pressure measurement experience, our field-proven Druck silicon technology is at the heart of the new platform, resulting in a range of high quality, high stability pressure sensors. Custom-built from standard components, manufacturing sensors to your requirement is fast and simple; each UNIK 5000 is a "bespoke" pressure sensing solution, but with the short lead times and competitive pricing you would expect from standard products.
Custom pressure ranges and cable lengths are available upon request. Please contact us for details.
