Dwyer 629 Series Differential Pressure Transmitter 0 to 100 psid
629C-05-CH-P2-E5-S1
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Range |
|---|---|---|---|
Contact us for a price
|
In stock
|
629C-02-CH-P2-E5-S1
|
Range:
|
|
Contact us for a price
|
In stock
|
629C-05-CH-P2-E5-S1
|
Range:
|
|
Contact us for a price
|
In stock
|
629C-03-CH-P2-E5-S1
|
Range:
|
|
Contact us for a price
|
In stock
|
629C-04-CH-P2-E5-S1
|
Range:
|
Features
- 0.5% Accuracy
- NEMA 4X (IP66) Enclosure
- Dual pressure sensors
- Removable terminal block
- LCD indicator option
- 4 to 20 mA or voltage output signal

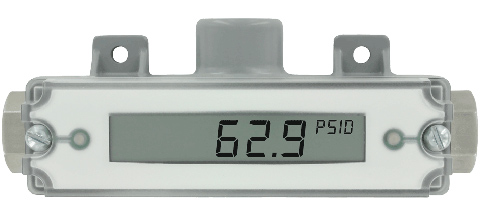

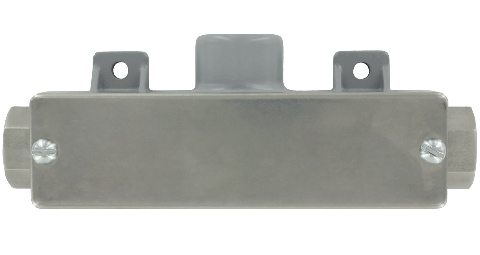

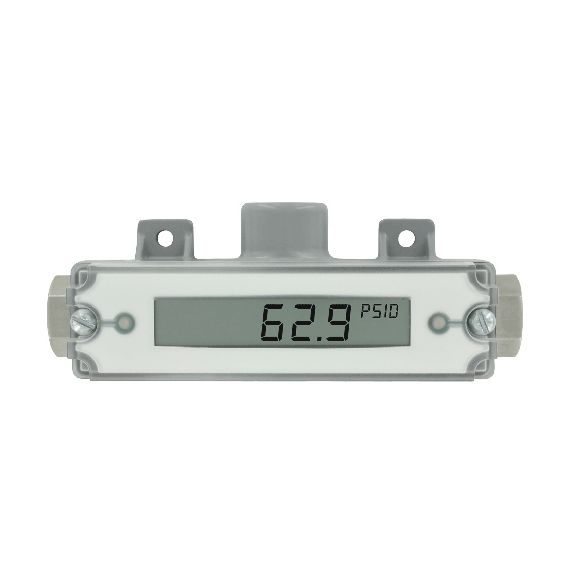

The Dwyer 629 Series Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4 to 20 mA output signal or field selectable voltage. Small internal volume and minimal moving parts result in exceptional response and reliability. The terminal block, as well as a zero adjustment button, are easily accessed under the top cover. The Series 629C Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.
Applications for the 629C include:
- Flow elements
- Heat exchangers
- Filters
- Coils
- Chiller
- Pumps
