E+H Deltabar PMD55 Pressure Transmitter
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Threaded process connections
- -40 to 185°F (-40 to 85°C) process temperature
- 0.5mbar to 40bar (0.0072 to 600psi) measuring range
- ±0.1%, "Platinum" ±0.075% (optional) accuracy
- 4 to 20mA HART outputs
- HART digital communication
- ATEX, FM, CSA, IECEx, INMETRO, NEPSI, TIIS
- SIL
- NACE MR0103, NACE MR0175, EN10204-3.1

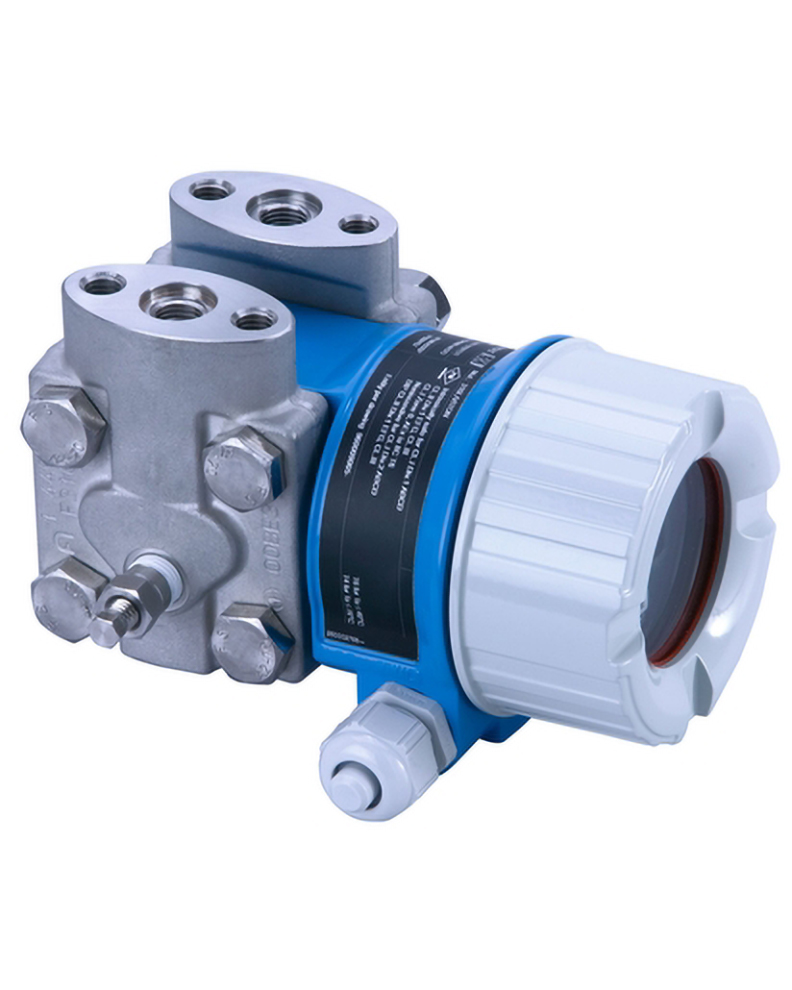

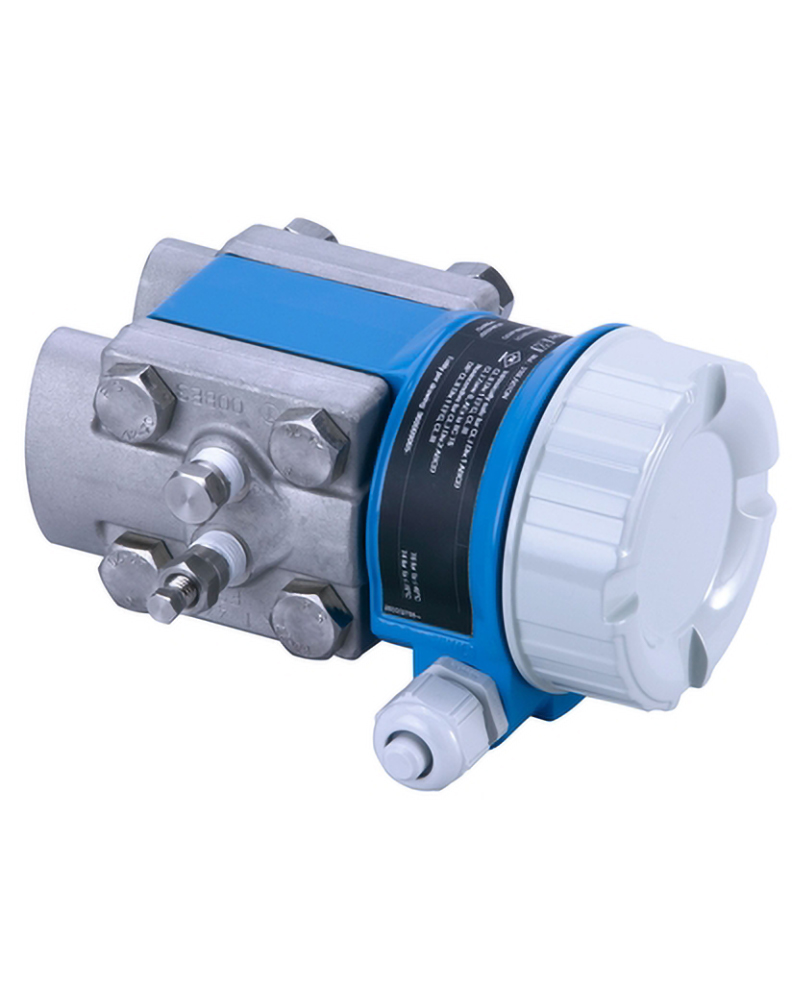

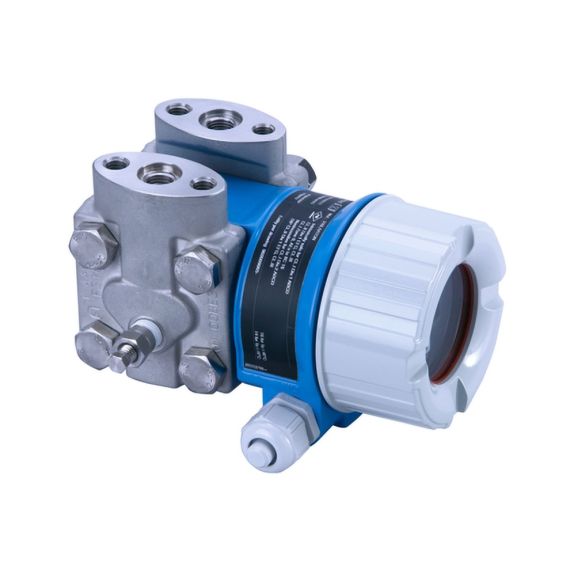

The E+H Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
