Features
- Threads, flanges and hygienic process connections
- 14 to 212°F (–10 to 100°C) (275°F (135°C) for 30 minutes maximum) temperature
- 0.1 to 10 bar rel. (1.5 to 150 psi) measuring range
- ±0.075% accuracy
- Supply / Communication
- 4 to 20mA HART:
- 10,5 to 45V DC
- Ex ia: 10,5 to 30V DC
- PROFIBUS PA /
- FOUNDATION Fieldbus:
- 9 to 32V DC (Non Ex)
- ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC
- Overfill prevention WHG, SIL
- EN10204-3.1, NACE MR0175, MR0103
- 3A, EHEDG, CoC ASME-BPE
- GL/ DNV, NSF

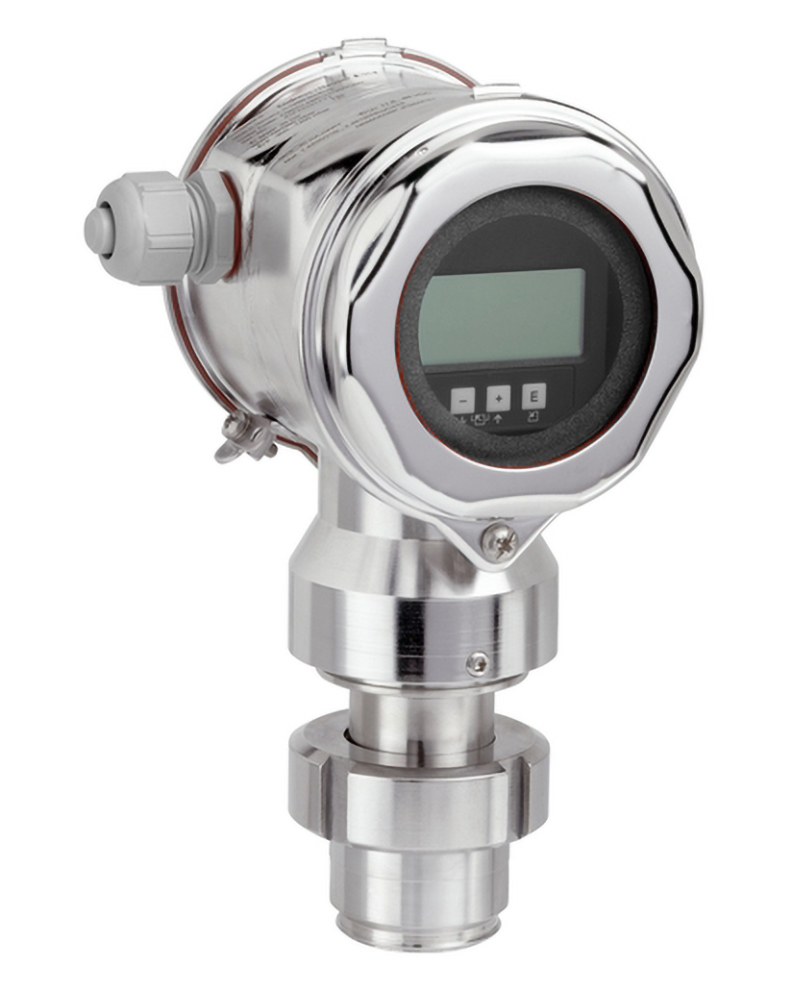

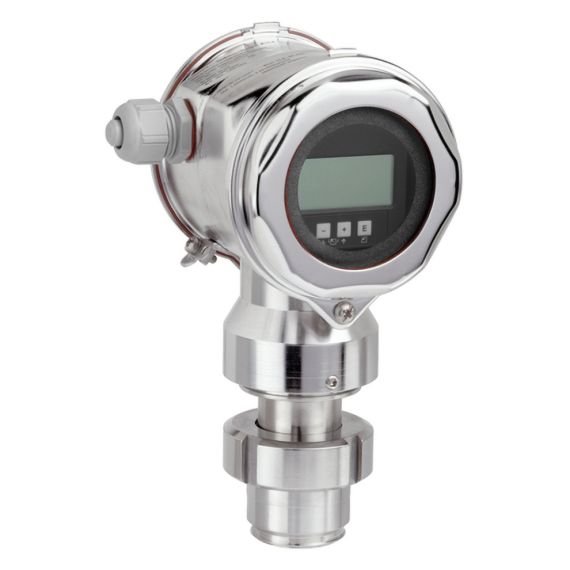

The E+H Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.
