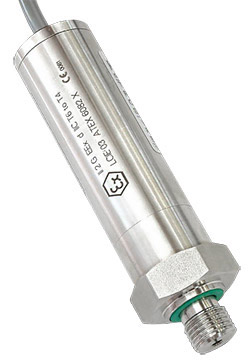

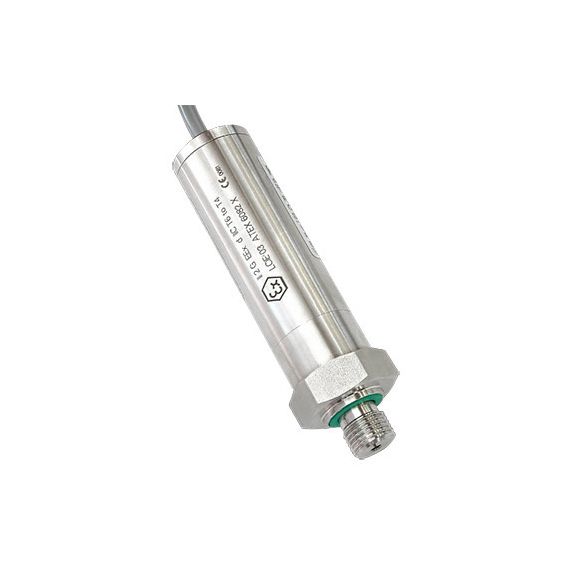

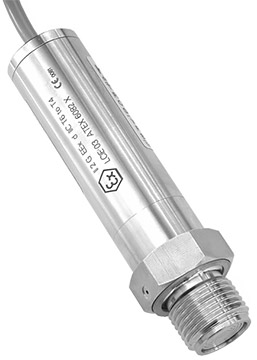

Keller 33 X Ed / 35 X Ed Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressure range: -1 up to 300 bar
- Microcontroller-based electronic evaluation
- Temp range: 14 to 176°F(-10 to 80°C)
- Material options: stainless steel 1.4435 (316L) or Viton
- PUR-cable, length 2m electrical connection
The Keller 33 X Ed / 35 X Ed Pressure Transmitter are piezoresistive pressure transmitters with pressure proof housing and are approved for use in explosion risk areas of group II. They provide stable and accurate measurements of absolute and gauge pressures of liquid and gaseous media in the pressure range between 0.1 and 300 bar.
The modular structure of this product range allows highly flexible applications and solutions that are tailored to users‘ requirements. Numerous versions are available, for example with different pressure connections, materials and filling oils, or versions for use with oxygen and with special performance characteristics.
This series features microcontroller-based electronic evaluation to ensure maximum accuracy. Each transmitter is gauged across the entire pressure and temperature range. This provides the basis for calculating a mathematical model that corrects all reproducible errors. The pressure value can be read via the interface and at the same time it is also available in analog form as a 4-20 mA or 0 to 10 V version.
