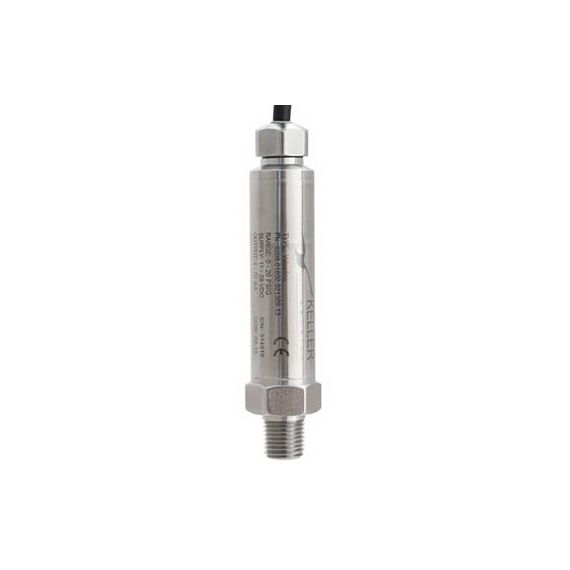

Keller Valueline High Accuracy Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Accuracy includes non-linearity, hysteresis, & non-repeatability
- ±0.1% (±0.05% optional) FS Static (25°C)
- ±0.25% (±0.1% optional) FS Total Error Band (TEB)
- UL/cUL IS-approved
- NSF 61 and NSF 372 certifications (PE jacket only)
- 4-20mA includes guaranteed lightning protection
- Lifetime warranty against voltage surges
- Ranges available from 0 to 2 up to 15,000 PSI
- 316L SS & Fluorocarbon wetted materials
- IP68 environmental protection with cable
- IP65 with connectors
- 2-year warranty covers defects in materials & workmanship
- Built in the USA (ARRA Section 1605 Compliant); CE certified
The Keller Valueline high accuracy pressure transmitter provides outstanding performance in new or existing pressure measurement applications. The Valueline can be calibrated to any pressure range between 2 and 15,000 psi with excellent Total Error Band (TEB) accuracy. It also provides a choice of analog outputs (current or voltage), which simplifies installation and ensures compatibility with most SCADA and PLC systems.
The Valueline pressure transmitter has been certified by UL to NSF/ANSI 61 and 372 standards for use in drinking water, and it is UL/cUL IS-approved for hazardous location applications.
Valueline models equipped with 4 to 20mA analog output include guaranteed lightning protection at no additional cost. This feature protects the pressure transmitter from fast-rising transients and carries a lifetime guarantee against damage from electrical surge making it perfect for installation in areas prone to chronic damage due to transients caused by lightning.
