Features
- Pressure ranges (-14.5 to 21.7 PSIG) to (0 to 8700 PSIG)
- ±0.075 % accuracy
- 4-20 mA, 2-wire w/HART output
- 1/2" NPT fitting
- Turndown ratio up to 100:1
- 316L Stainless Steel
- Continuous self-diagnostic function
- Automatic ambient temperature compensation
- Long-term stability

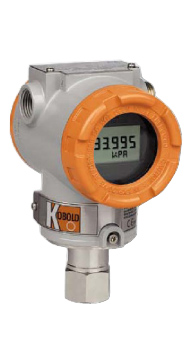

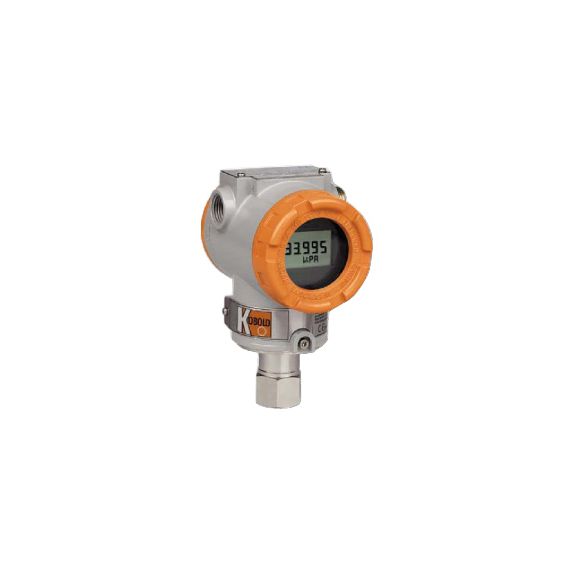

The Kobold Model PAS Pressure Transmitter is a micro-processor-based, high-performance pressure transmitter offering a user-adjustable pressure range and scalable output signal. It has automatic compensation for ambient temperature and process variables. Communication with the PAS Series heavy-duty pressure transmitter and configuration of various parameters is possible via HART protocol. All data within the sensor is stored via EEPROM. The PAS Series heavy-duty industrial pressure transmitter features a piezo resistive pressure sensor that can measure gauge pressure or absolute pressure.
