Features
- 30, 50, 100 and 200 psi ranges available
- UL and CUL safety approvals
- FM intrinsic safety approval (except for Output "4-20 mA, temp option")
- Accuracy up to ±0.10% FS
- Analog Outputs of 4-20 mA or VDC
- Welded 316 SS or Titanium Construction
- Two year warranty
- Resolution: ±0.0001%FS
- Operating temp: -4 to 140°F
- Protection rating: IP68, NEMA 6P

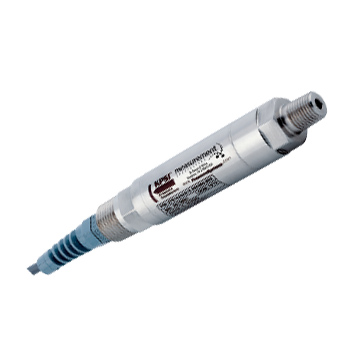

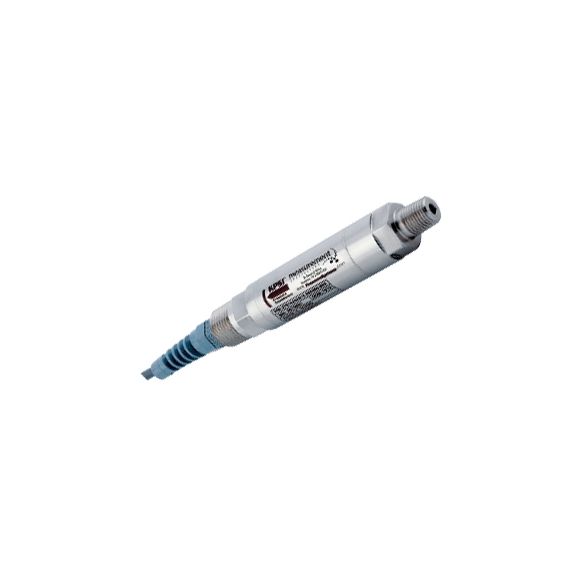

The KPSI 27 Series pressure transducers are non-submersible transducers that include UL and CUL approvals. The FM intrinsic safety approval standard is included for all versions except those with output 4-20 mA, temperature option. The transducers are specifically designed for demanding industrial applications where the primary criteria are reliability and economy. These units provide repeatable, precision measurements under the most hostile conditions. Capable of measuring vacuum to pressure as high as 200 psi, these transducers can meet most any industrial pressure measurement requirement.
Application include:
- Tank Level
- Compressors
- Pump Control
- Vacuum
- Bubbler Systems
