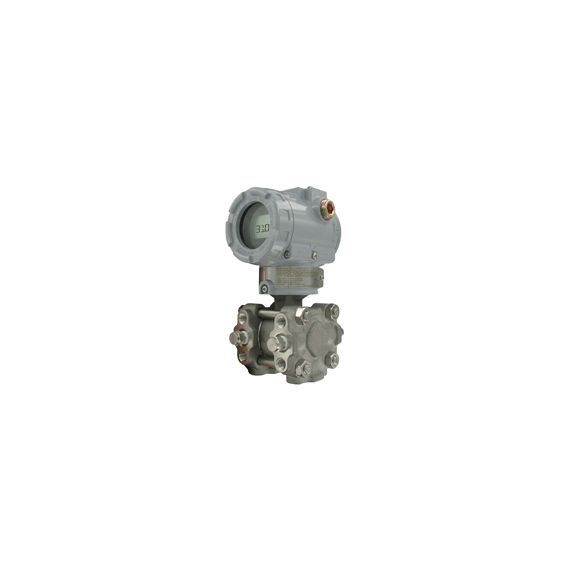

Mercoid 3100 Differential Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- For compatible gases, steam, liquids or vapors
- Completely configurable using zero/span button (no calibrator required)
- Rangeability: 100:1 turndown
- Multiplanar option available
- Selectable engineering units
- High accuracy (±0.075%)
- Automatic ambient temperature compensation
- Fail-mode process function
- Fits standard manifold valves
- -40 to 248°F (-40 to 120°C) temperature limits
- Pressure range: -14.5 to 2000 psi
- Stability: ±0.125% FSO/yr
- Optional 5 digit LCD display
- 4 to 20 mA /HART Communications
- Electrical Connection: Two 1/2" female NPT conduit, screw terminal
- Process Connection: 1/4" female NPT
- Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D
- Agency Approvals: CE, FM
The Mercoid 3100 series smart pressure transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART Communication. The 3100 is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The 3100 series is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
The Mercoid 3100 series is available in both a standard design (3100D) as well as a multiplanar (3100MP) design. The multiplanar design simplifies installation, saving operator time and money during set up. The 3100MP can be installed vertically without adaptors or brackets regardless of the process connection orientation. The multiplanar footprint fits standard manifold valves and averaging flow sensors.
