Features
- Accuracy ±0.50% of span
- Media temperature range 32 to 176 °F (0 to 80 °C)
- Gauge ranges from vacuum to 1 to 15,000psi
- Absolute ranges from 15 to 300psi
- Current and voltage outputs available
- 316 Stainless Steel housing material, process connection and measuring element
- Measuring element material is 13-8PH Stainless Steel for 150psi and higher
- RoHS compliant
- CE compliant for RFI, EMI and ESD protection
- cULus compliant
- ROHS compliant
- IP65/67

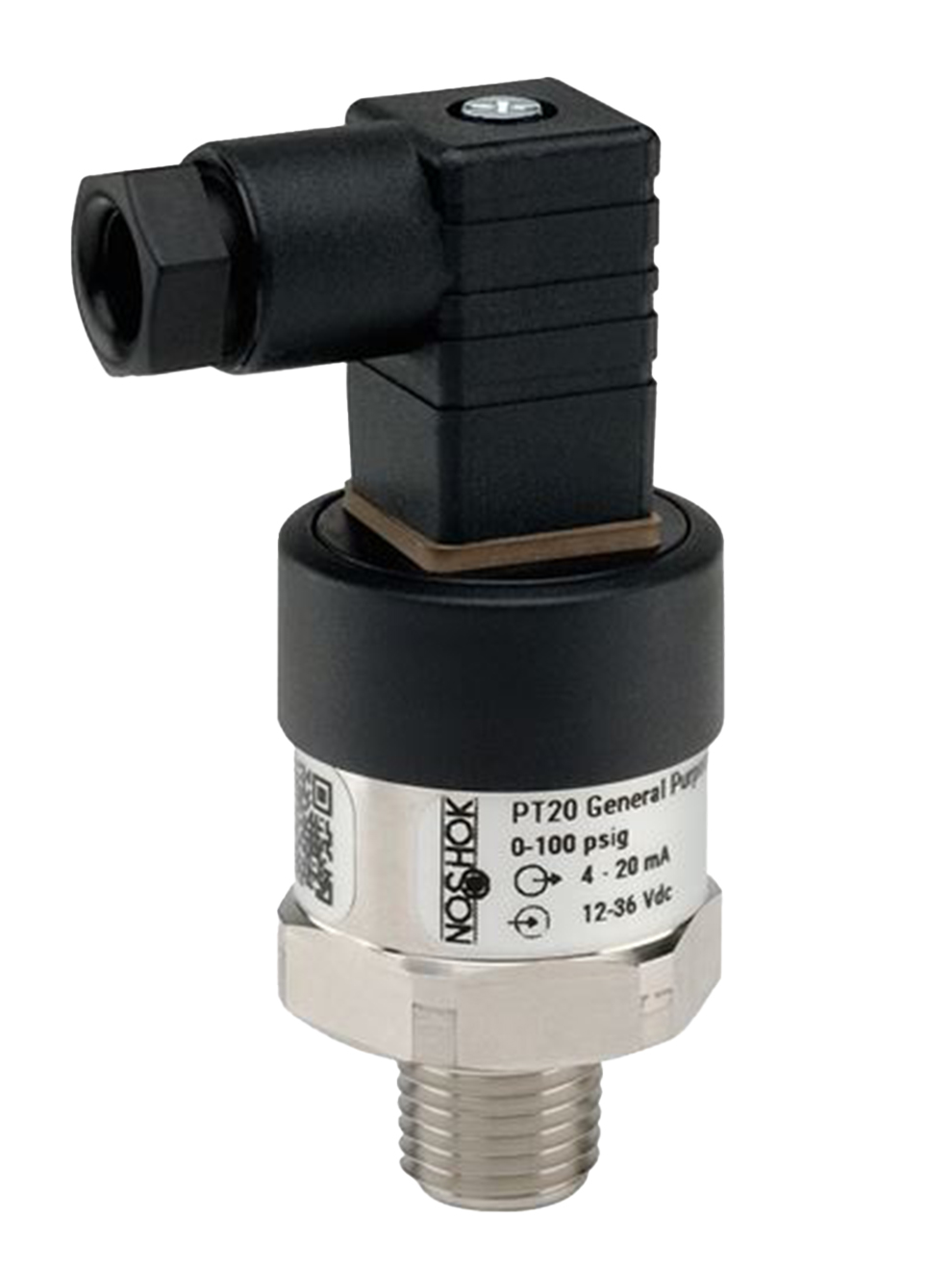

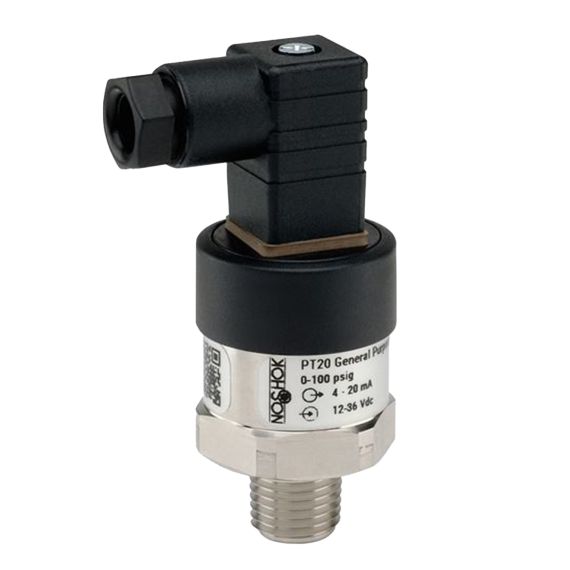

The NOSHOK PT20 Series Pressure Transmitter is built as a general purpose, fixed ranger sensor for use in a wide range of industrial applications. The PT20 Series provides reliable readings in versatile environments, with ±0.50% accuracy and an expanded list of ranges from vacuum through standard gauge pressures of 1 to 15000psi.
With a shock resistant design tested to withstand 500g's per IEC standards, and a response time of 4ms or less, the PT20 Series is built for consistency and longevity, with a life span that includes more than 100 million load cycles. Part of a new line replacing the NOSHOK 100, 200, 300 and 615 Series transmitters, the PT20 Series is cutting edge with a variety of pressure and electrical connections to suit most applications. With reverse polarity, over-voltage and short circuit protections, burst pressure guaranteed 2-3 times full scale and proof pressure guaranteed 1.5-2 times full scale, the PT20 Series is low maintenance and built to last.
All NOSHOK PT Series Transmitters come with a three year warranty.
Applications
- HVAC
- Hydraulics & pneumatics
- General industrial
- Automation
