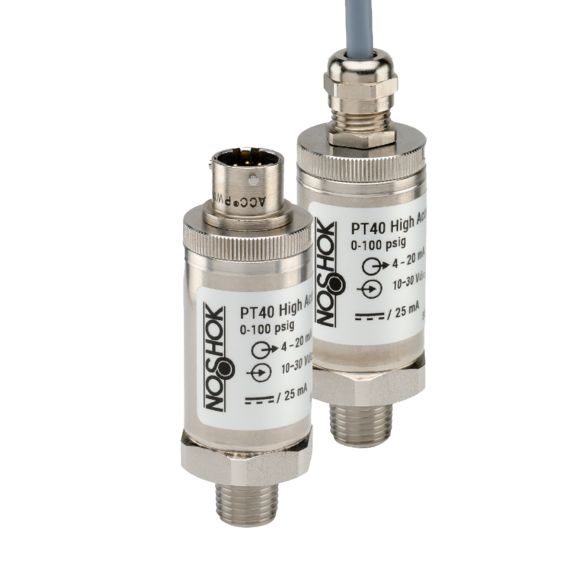

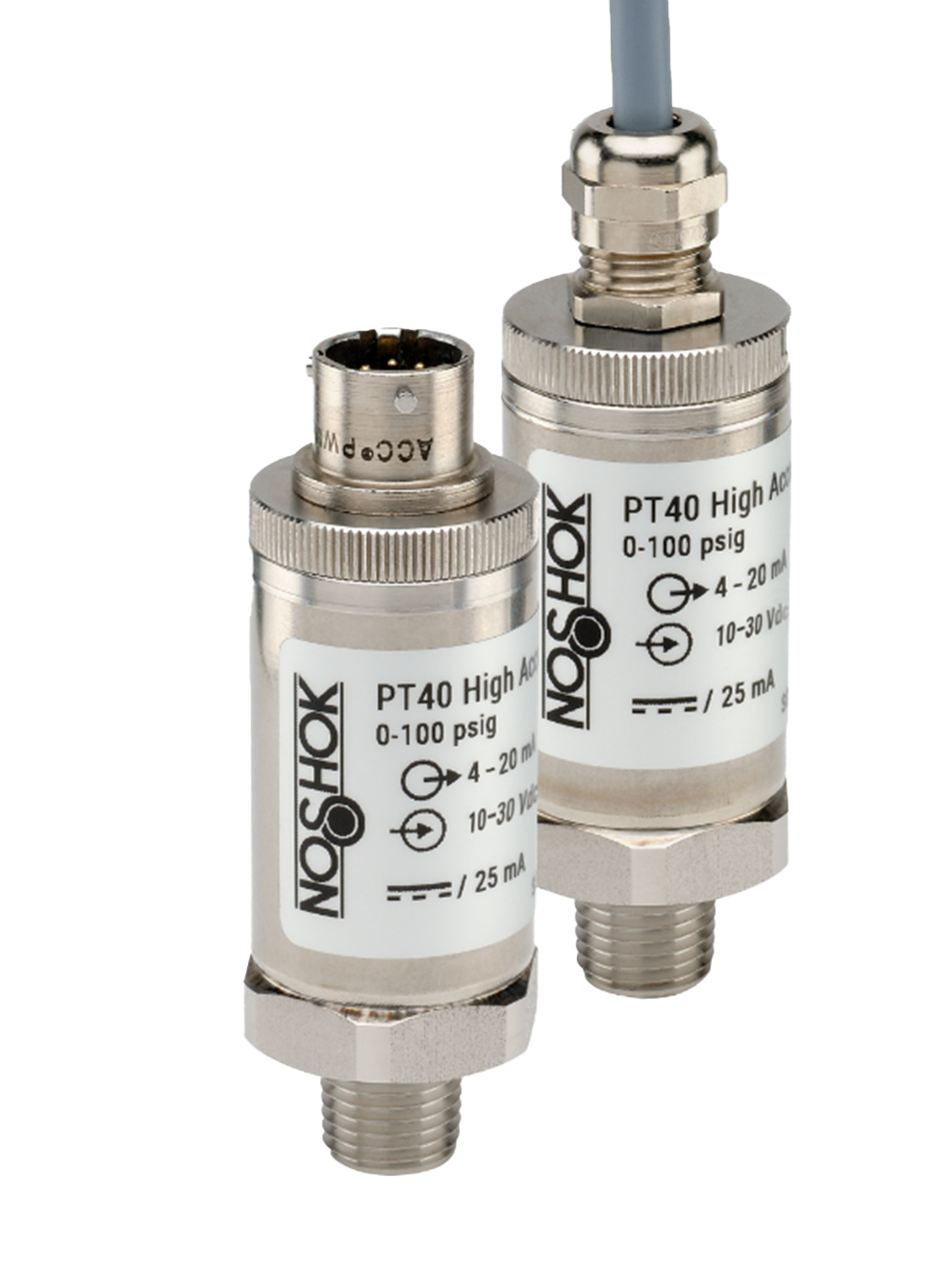

NOSHOK PT40 Series Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- ±0.25% or ±0.125% accuracy options available
- Media temperature range -22 to 212°F (-30 to 100 °C)
- Adjustment: ±10% full scale
- Gauge ranges from vacuum to 2 to 15,000psi
- Absolute ranges from 15 to 300psi
- Current and voltage outputs available
- 316 SS housing material, process connection and measuring element
- Measuring element constructed with 17-4PH SS for 500psi and greater
- RoHS compliant
- CE compliant for RFI, EMI and ESD protection
- ROHS compliant
- IP65/67
The NOSHOK PT40 Series Pressure Transmitter is a highly accurate, fixed range sensor for use in a wide range of industrial applications with a response time of less than 1ms, for real time data generation where time and consistency counts. The standard model provides ±0.25% accuracy with the option of ±0.125% for more exact readings. In addition to improved accuracy the PT40 series offers expanded ranges from vacuum to to standard gauge pressures of 2 to 15000psi.
With a shock resistant design tested up to 1000g's per IEC standards, and a life span that includes over 100 million load cycles, the PT40 Series is built to be durable and low maintenance while providing improved accuracy across the board. Part of a new line replacing the NOSHOK 100, 200, 300 and 615 Series transmitters, the PT40 Series is cutting edge with an expanded selection of pressure connections and electrical connections to suit any application. With reverse polarity, overvoltage and short circuit protections, burst pressure guaranteed 3-5 times full scale and proof pressure guaranteed 1.5-3 times full scale, the PT40 Series is built to last and provide accurate reads for every use case.
All NOSHOK PT Series Transmitters come with a three year warranty.
Applications
- Hydraulics & pneumatics
- Laboratory & test equipment
- Power generation
- Automation
- Mobile equipment
- General industrial
