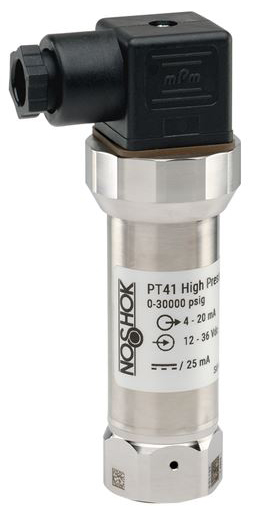

NOSHOK PT41 Series Pressure Transmitter
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Gauge pressure ranges from 23,000 to 145,000 psig
- Accuracy ±0.50% of span (BFSL) with ±0.25% option
- ±10% full scale for zero and span adjustment
- 32 to 176°F (0 to 80°C) media and compensated temperature ranges
- Current and voltage outputs available
- Elgiloy and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI, and ESD
- RoHS compliant
- Reverse polarity, overvoltage and short circuit protection
- Shock: 100g’s according to IEC 60068-2-27
- Vibration: 15g's according to IEC 60068-2-6
- IP65: DIN EN 175301-803 Form C
- IP67: 4-pin Bayonet, 6-pin Bayonet, 1/2" NPT conduit, M12 x 1 (4-pin), Integral cable
The NOSHOK PT41 Series pressure transmitter is engineered for robust performance in high pressure applications. The PT41 transmitter addresses pressure ranges from 23,000 to 145,000 psig, offers premium standard accuracy of ±0.25% of span (BFSL) with ±0.125% optional, and features Elgiloy and 17-4PH Stainless Steel wetted parts.
The PT41 is CE compliant to suppress RFI, EMI, and ESD, and it is RoHS compliant.
Applications
- Laboratory and test equipment
- Power generation
- Hydrostatic testing
- High pressure cleaning
- Waterjet cutting
