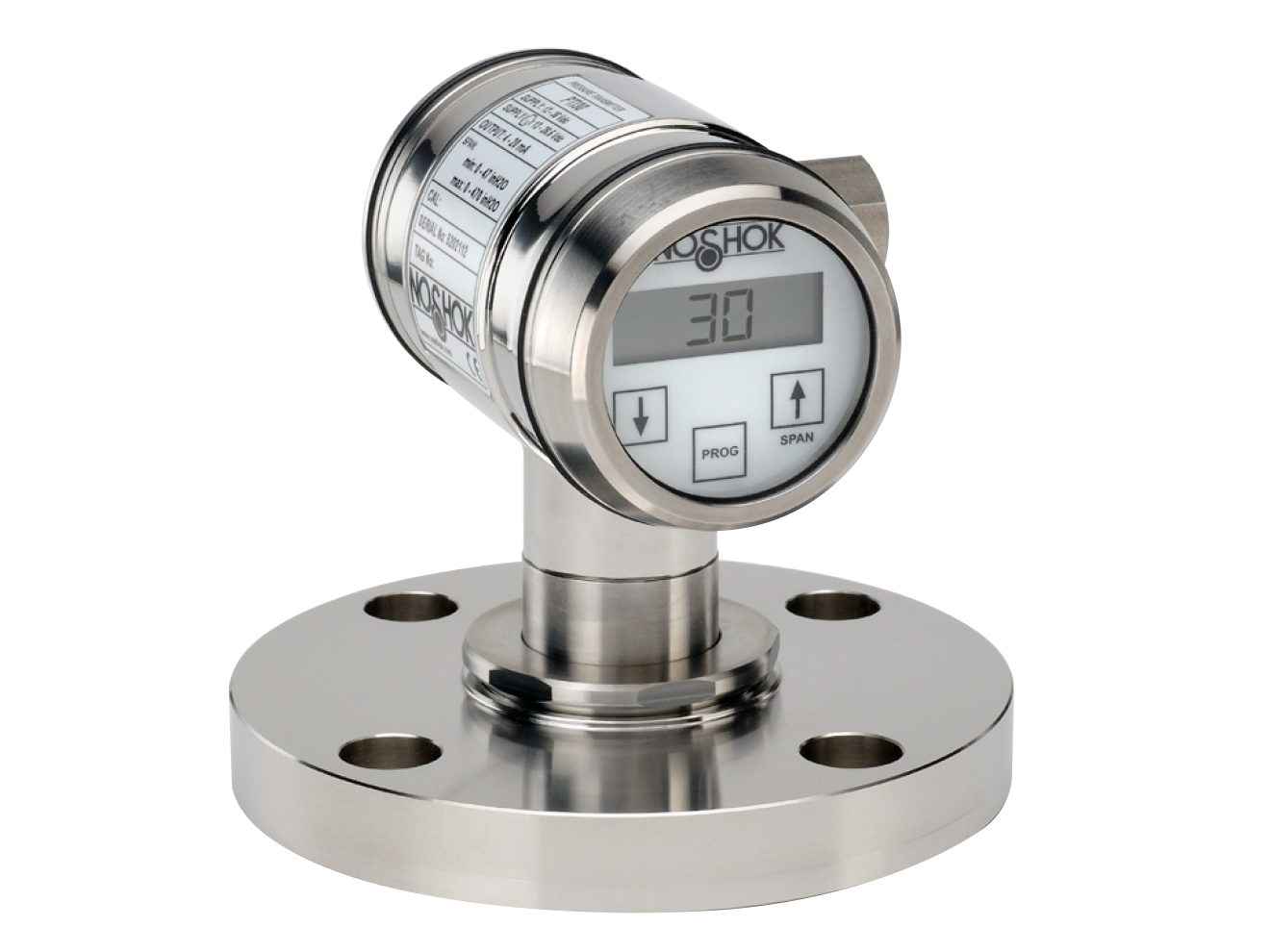

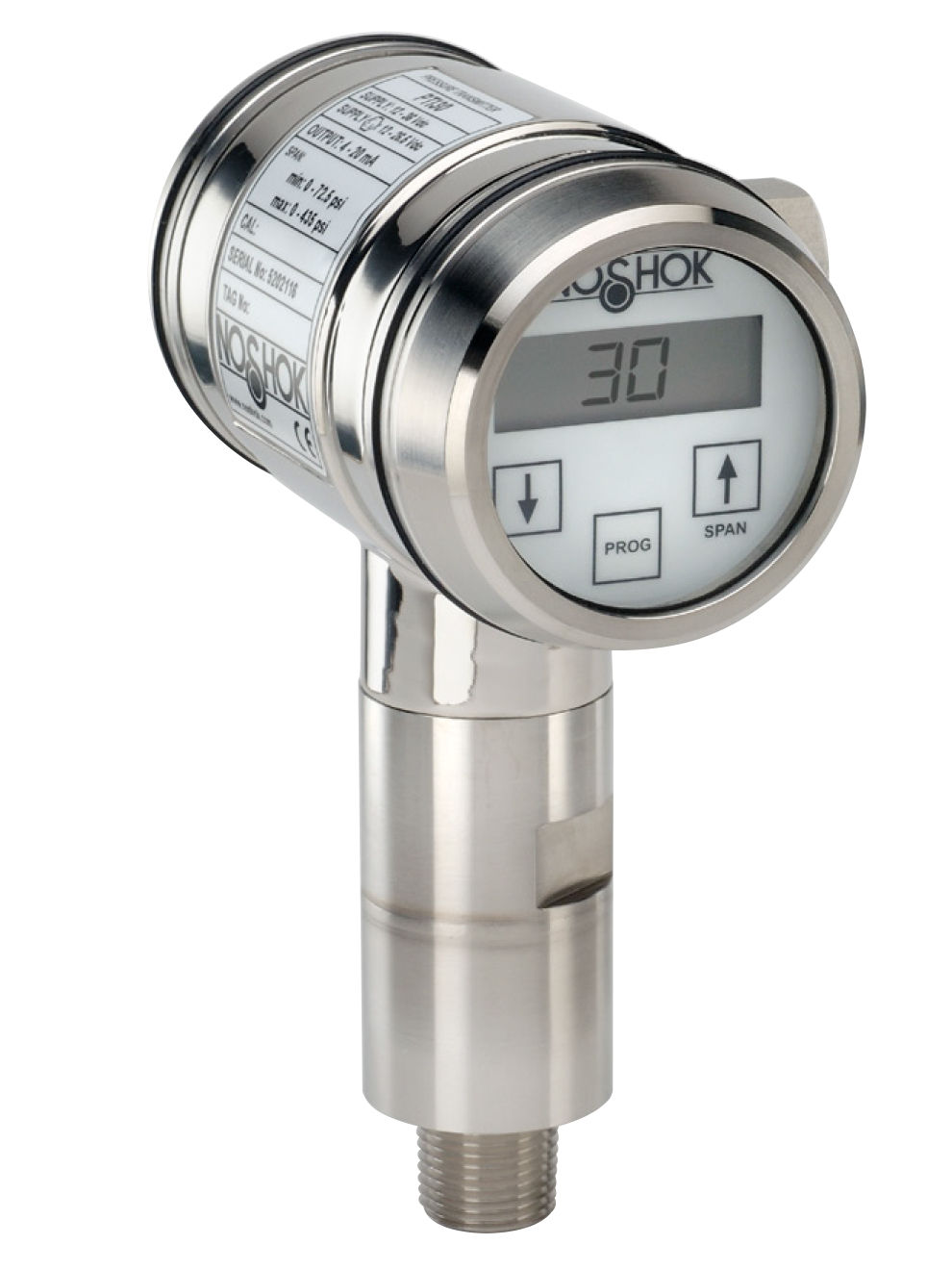

NOSHOK PTI30 High Accuracy Intelligent Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pressure ranges: 5 to 1,450psig (adjustable from vacuum to full scale)
- Stability: <0.1% per year
- Accuracy: ±0.1% of adjusted span (10:1 turn down)
- Response time: <250ms
- Service life: 10+ years
- Temperature ranges:
- media -4 to 176°F (-20 to 80°C)
- ambient -4 to 158°F (-20 to 70°C)
- flange -4 to 212°F (-20 to 100°C)
- Output: 4 to 20 mA 2-wire (HART enabled option available)
- Power requirement: 12 to 36VDC
- Active temperature compensation
- Housing/Connection/Measuring Element Material: Stainless Steel
- Environmental rating: IP66
- RFI, EMI and ESD protections
- CE compliant
- 3-year Warranty
The NOSHOK PTI30 Series Intelligent Pressure Transmitter utilizes a piezoresistive silicon sensor for use in general industrial applications where improved accuracy and temperature compensation is required. When the PTI30's sensor element is put under pressure, it creates a deflection in the silicon substrate and bridge network. This generates a value that is converted into a pressure measurement within 0.1%, providing consistent, high accuracy readings in less than 250ms of change occurring.
The PTI30 features a compact but durable design, with a stainless steel flush diaphragm that reduces the fill fluid required, as well as the potential for damage when utilized in harsh environmental conditions. The design features easy-to-implement adjustments to all available ranges via a streamlined 3 button system on the PTI30's display, or through the optional HART output.
All NOSHOK PTI Series Transmitters come with a three year warranty.
Applications
- General industrial
- Pulp & paper
- Water & wastewater
- Power generation
- Food & beverage
