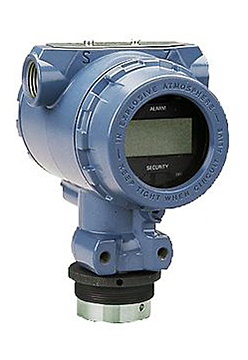

Rosemount 2090P Pulp and Paper Pressure Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- ±0.20% of span accuracy or
±0.10% with high accuracy option - Absolute or gauge pressure ranges up to 300 psi
- 20:1 rangedown
- 4-20mA Selectable HART Protocol output
- 1in flush mount compatible with PMC process connection
or 1.5in threaded mounting connection - Single-filled sensor system
The Rosemount 2090P pulp and paper pressure transmitter is designed specifically for use by the pulp and paper industries. The transmitter has process connections that position the isolation diaphragm flush with vessel or pipe walls, eliminating clogging problems associated with highly viscous processes that tend to crystallize, polymerize, or precipitate, such as those in the pulp and paper industry.
The Rosemount 2090P transmitter is engineered with a 1-inch flush mount compatible with PMC process connection or a 1-1/2-inch threaded mounting connection. It can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities. Higher turndown allows for lower inventories by allowing the user to measure pressures from 1.5 psi to 300 psi with only three transmitter ranges.
The 2090P transmitter utilizes the advantages of HART Communication, enabling quick and easy reranging, calibration and troubleshooting. The single-filled sensor system of the transmitter leads to outstanding accuracy due to full sensor compensation.
