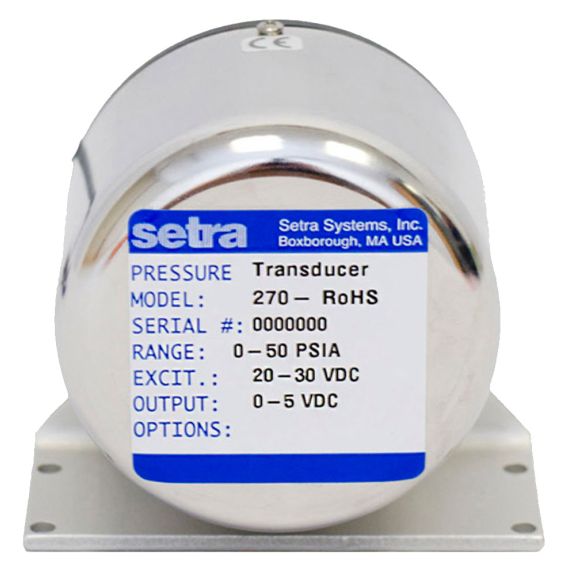

Setra 270 Pressure Transducer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Repeatability within 0.01% FS
- Excellent long-term stability
- Low power consumption
- Instant warm-up
- Operating temp: 0 to 175°F (-18 to 80°C)
- Fast response
The Setra 270 Pressure Transducer is known around the world for high accuracy environmental and test & measurement applications with consistent performance. Applications range from remote weather monitoring and avionics systems, endorsed by government agencies, to crucial compensation for barometric pressure variations in laser interferometers.
Long-term reliability and stability in such demanding application environments are achieved in the 270 with the combination of the SETRACERAM™ capacitive sensor and Setra's proprietary custom IC analog circuit.
The fundamentally simple design and thermally stable glass fused ceramic sensing capsule is coupled with the sophisticated capacitance charge-balance IC circuit where accurate signal conditioning and environmental compensation is performed. Standard accuracy is 0.05% Full Scale, end point method. Higher accuracy and thermal specifications are also available.
