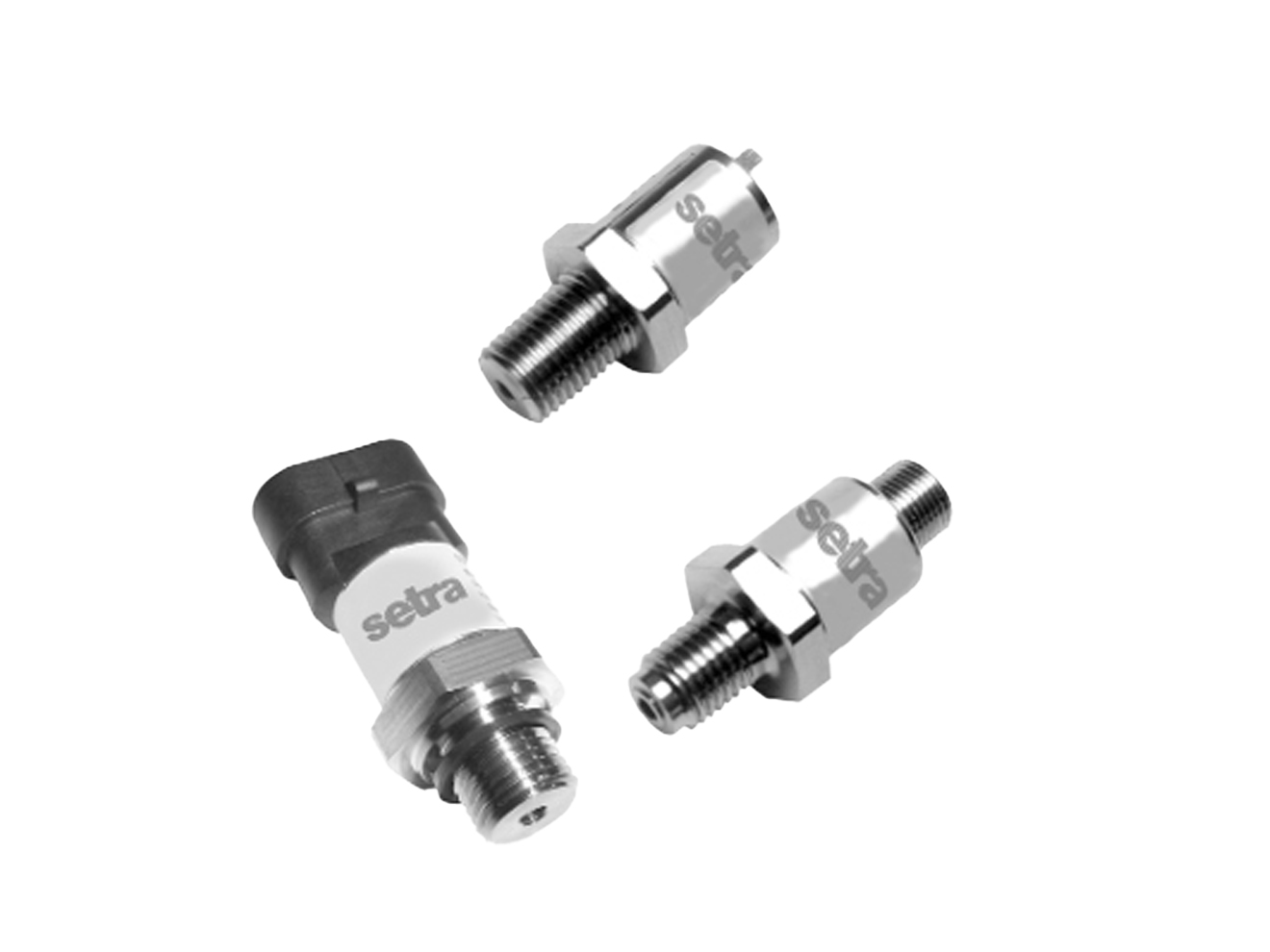

Setra 3100 Pressure Transducer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Stability ±0.2% FS for <1000 PSI (60 BAR)
- 0.25% Full scale accuracy
- 50 to 30,000 PSI
- -40 to 221°F
- Dual output on voltage units
- mA, voltage, or ratiometric outputs
- Reverse wiring protected
- Stainless steel construction
- IP67
- Fully RoHS compliant
The 3100 Series high-pressure OEM transducers feature a sputtered thin-film sensor to provide high levels of performance and stability for large volume OEM installations. A wide choice of outputs as well as electrical and pressure connections means that the unit is suitable for most applications without modification. In addition, the compact construction of the 3100 Series makes it ideal for installations where space is at a premium.
Principle of Operation for Thin film Strain Gauge Pressure Sensors
Using the well proven Wheatstone Bridge principle, molecular layers are sputtered onto a 17-4 PH stainless steel diaphragm and the circuit is etched to provide excellent resistor definition and uniformity. Sputtered thin film technology allows the design of simple, highly accurate and compact strain gauges deposited onto the back of the sensing diaphragm, which is in direct contact with the media. This method virtually eliminates drift, while offering enhanced sensitivity.
Applications:
- Medical
- Hydraulic Pressure
- HVAC/R Compressors
- Variable Speed Pumps
- Refrigeration
- Industrial/OEM
- Pumps
