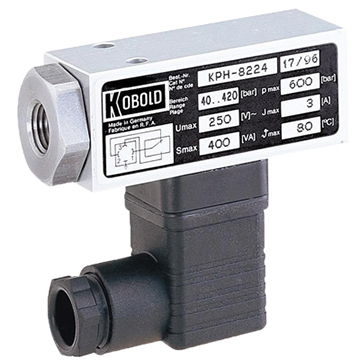

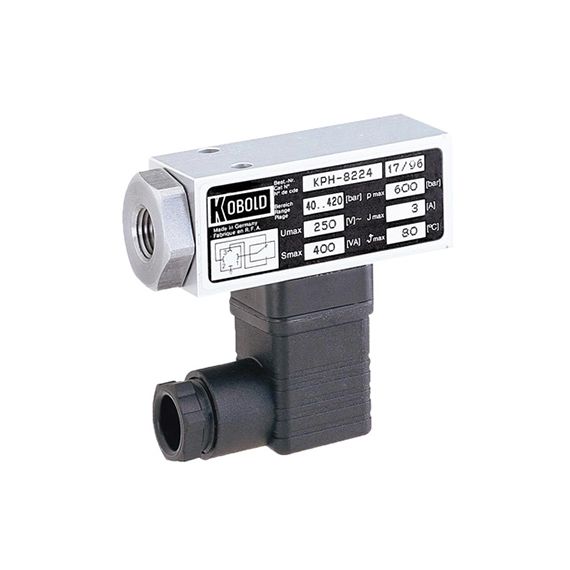

Kobold KPH Compact Pressure Switch 70 to 1,015 PSIG Hirschmann with 1/2 inch conduit electrical connection
KPH-8221C
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Pressure Range | Sort by Options |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
KPH-8021
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8021C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8021EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8024
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8024C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8024EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8025
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8025C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8025EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8222
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8222C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8222EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8022
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8022C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8022EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8223
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8223C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8223EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8224
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8224C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8224EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8023
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8023C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8023EC
|
Pressure Range:
|
Options:
|
|
Contact us for a price
|
In stock
|
KPH-8221
|
Pressure Range:
|
Options:
|
|
$4160
|
In stock
|
KPH-8221C
|
Pressure Range:
|
Options:
|
|
$1560
|
In stock
|
KPH-8221EC
|
Pressure Range:
|
Options:
|
Features
- Easily adjusted setpoint
- Fixed switch deadband
- ±4% of final value repeatability (±3% for vacuum)
- 1/4" FNPT standard process connection
- G1/4 & 7/16-20 UNF (optional)
- DIN 43650A electrical connection
- Suitable for pneumatic or hydraulic applications
The Kobold KPH compact pressure switch features a snap-action switch with gold plated contacts. Available with low, medium and high pressure ranges, the KPH is designed for a variety of process media including air, gases, lubricating oil and light fuels. Pressure ranges are available from -14 to 0 PSIG (vacuum) up to 580 to 6,100 PSIG, with corresponding burst pressures ranging from 1,150 to 8,700 PSIG.
The Kobold KPH compact pressure switch comes standard with a 1/4 inch female NPT process connection and a DIN 43650A electrical connection. The switch has a fixed deadband, though the setpoint is easily adjustable, and a max switching rate of 100 per minute.
