Features
- Vacuum through 6,000psig adjustment ranges
- 100 VA Max Voltage 42 Vdc contact rating
- SPST creep action switch
- Silver-plated, optional gold-plated contacts
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
- Environmental rating:
- IP00 Exposed Terminals
- IP69 M-12, Flying Leads & Deutsch Integral

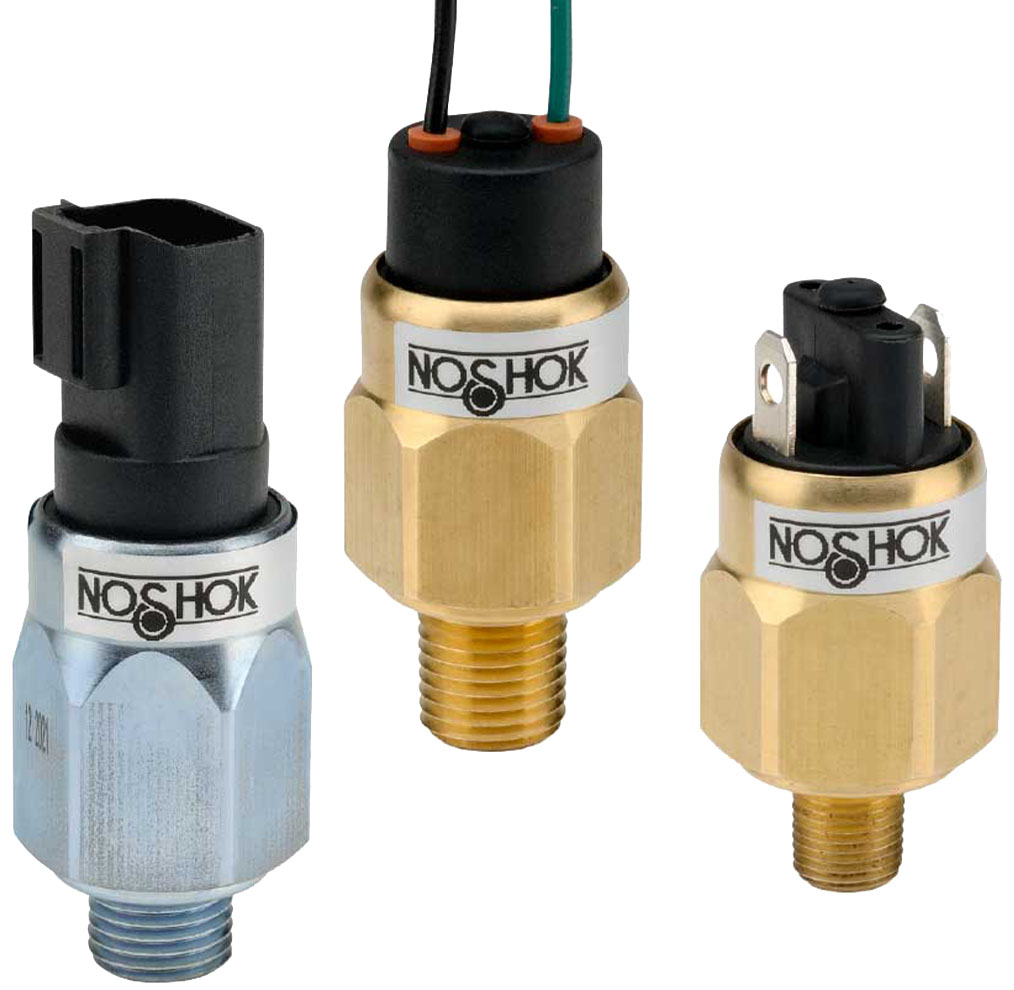

The NOSHOK 100 Series mechanical compact SPST pressure switch is a creep action, low current switch intended to be laboratory set. These switches feature Silver-plated contacts with switch adjustment ranges from vacuum through 6,000psig. The 100 Series switch series offers Brass and Zinc-nickel housing material options with NBR, Polyimide, or Buna-N wetted parts depending on model.
Pressure Switch Applications
- Hydraulics & pneumatics
- Pumps & compressors
- Leak detection
- Tank monitoring
- Water management
