NOSHOK 300 Series Mechanical Compact Pressure Switch
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Switch adjustment ranges from vacuum through 4,600psig
- SPST or SPDT snap-action function
- Solid silver, self-cleaning contact material
- Zinc-nickel plated steel housing
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
- IP65 rated for Hirschmann
- IP67 rated for M12 x 1

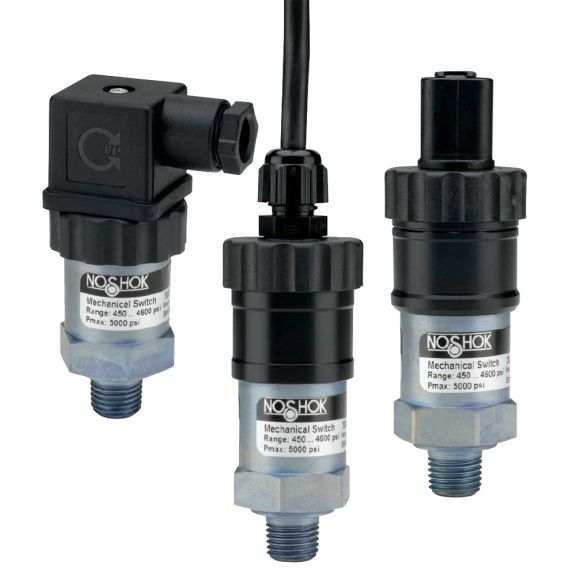

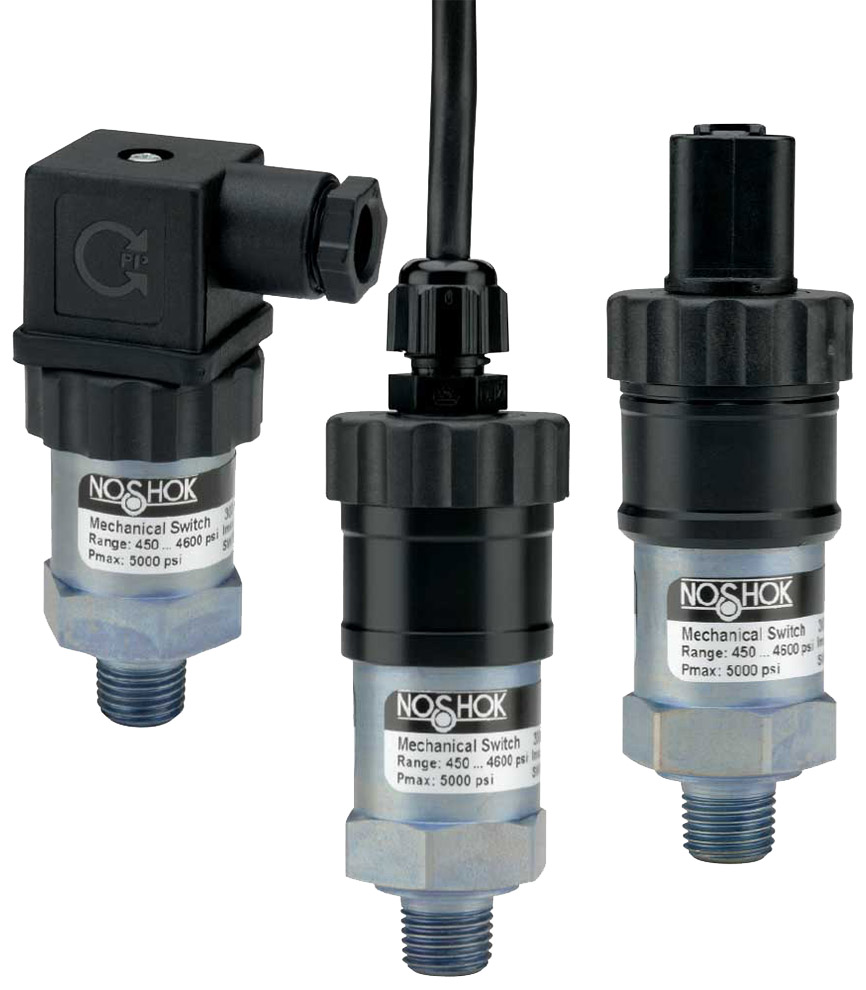

The NOSHOK 300 Series pressure switch is a SPST or SPDT snap-action switch with adjustable hysteresis and silver contacts. It offers switch adjustment ranges from vacuum through 4,600psig depending on model and a standard zinc-nickel housing with buna-n diaphragm wetted parts. The 300 Series switch also provides an improved contact rating over the previous version of 6A 125V/250VAC, and 6A 12/24VDC.
Pressure Switch Applications
- Hydraulics & pneumatics
- Pumps & compressors
- Leak detection
- Tank monitoring
- Water management
