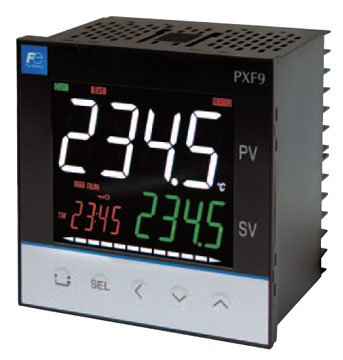

Fuji Electric PXF9 Temperature Controller
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Universal input
- Thermocouple, RTD, voltage, current, mV
- Improved input indication accuracy, up to ±0.2%
- 0.1 to 99 second control cycle
- On/Off control & PID controls with auto tuning
- PID, 2-degrees-of-freedom PID, & fuzzy
- Open-loop supported PID2 control
- Ramp soak function (simple program control)
- 64 steps x 1 pattern
- 32 steps x 2 patterns
- 16 steps x 4 patterns
- 8 steps x 8 patterns
- Directly connect to a PC with optional USB cable
- This will bus-power the unit
The Fuji Electric PXF9 temperature controller was developed as a successor to the PXR9. It is equipped with multiple input and output options as well as sophisticated control functions making is suitable for a wide range of applications. You can use any input among RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change.
The PXF series features highly accurate input indication:
- RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
- Thermocouple is the larder of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit
- Voltage and current are ±0.3% FS ± 1 digit
