Michell Instruments ES70 Gas Sampling System
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Indoor panel or outdoor enclosure mounting options
- Process connection via 6mm or 1/4” tube fittings
- High quality components, stainless steel tubing and fittings
- Sample inlet pressure up to 138 barg
- Flexible filtration options
- Choice of transmitter, flow and pressure control
- BS EN 10204 3.1 certification and NACE MR0175 available

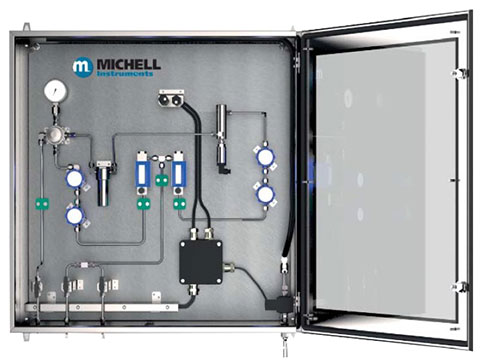

The Michell Instruments ES70 Sampling System series provide a choice of indoor or outdoor compatibility, sensor mount selection, along with a wide range of features to facilitate regulation of pressure and flow and the removal of contaminants. This enables the system to deliver a properly conditioned sample to the analyzer for reliable measurements and trouble-free operation. The optional integrated bypass system increases transport speed of the sample while reducing wastage. Each high quality sample system is constructed from 316 stainless steel components, with BS EN 10204 3.1 material certificates and compliance to MR 0175/ISO 15156 available on request.
The ES70 series is designed to simplify sample system configuration by providing a set of choices for all requirements, such as panel or enclosure mount, filtering, upstream and downstream pressure and flow control etc. This provides a quick and simple method to choose all the required components suitable for the application requirements
