Isotech Saturn 877 Thermocouple Calibration Sphere 115V
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Voltage Supply |
|---|---|---|---|
$38,93557
|
In stock
|
877-115V
|
Voltage Supply:
|
|
$35,39490
|
In stock
|
877-208/240V
|
Voltage Supply:
|
Features
- Spherical Designed Thermocouple Calibrator
- Temp range: 212 to 2372°F (100 to 1300°C)
- Calibration point:
- 8 as standard
- 16 to special requirements
- Diameter: 4 x 6mm and 4 x 8mm
- Immersion depth: 180mm

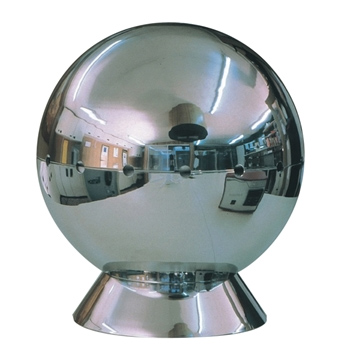

The Isotech Saturn 877 Thermocouple Calibration Sphere comprises a number of concentric shells. The outer shell of spun metal is for containment and support. Inside this is a layer of ceramic fiber. Within the fiber is a ceramic spherical mantle containing the heater windings. In the middle of the furnace is a solid cast-ceramic sphere with 8 or 16 tubes, to be used for the thermocouples requiring calibration.
The spherical design ensures a central zone of constant temperature. Thermocouples are inserted around the circumference of the furnace. When fully inserted, the measuring junctions sit within a few millimeters of each other at the center of the sphere. Up to 15 thermocouples can be calibrated simultaneously. The accuracy is between ±0.25°C and ±0.1°C at 1000°C.
