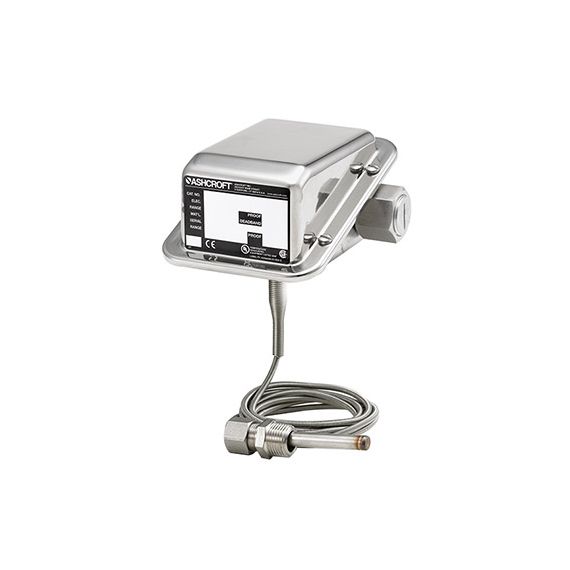

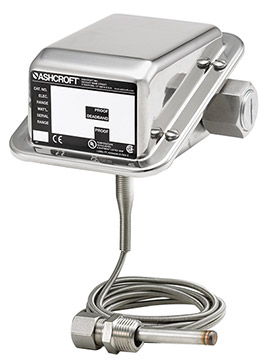

Ashcroft G Series Temperature Switch
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Watertight NEMA 4X, IP65 enclosure
- 316 SS construction
- Switch elements for all applications
- Single or dual independently adjustable setpoints
- Fixed or fully adjustable deadband
- UL & CSA listings standard
- Setpoints adjustable from 15 to 100% of range
The Ashcroft G-Series temperature switches feature a SAMA Class II vapor pressure thermal system. This system provides quick, accurate response to process temperature changes with minimal ambient temperature effects. This is inherent in the design due to the precise relationship between temperature and pressure according to the vapor pressure laws. A wide selection of sensing bulb and armored capillary lengths are available. The vapor pressure system design features small bulb sizes, making installation easy and cost effective.
All models feature ±1 percent of span set point repeatability with very high over-temperature ratings. These standard designs perform well in applications where shock and vibration could be a problem and should be used with Ashcroft thermowells for bulb protection and ease for installation and maintenance.
