Features
- Measuring range passive output:
- -40 to 230°F (-40 to 110°C)
- -40 to 302°F (-40 to 150°C) (Pt and Ni T-sensors)
- Measuring range active output:
- Duct sensor: -40 to 230°F (-40 to 110°C)
- Immersion sensor: -40 to 302°F (-40 to 150°C)
- Operating temp:
- Duct sensor (probe): -40 to 230°F (-40 to 110°C)
- Immersion sensor (probe): -40 to 302°F (-40 to 150°C)
- Electronics: -40 to 158°F (-40 to 70°C)
- Accuracy: ±0.3 °C (±0.54 °F)
- IP65 / NEMA 4 protection class
- 0 to 10V or 4-20mA outputs
- 24 VAC/DC supply

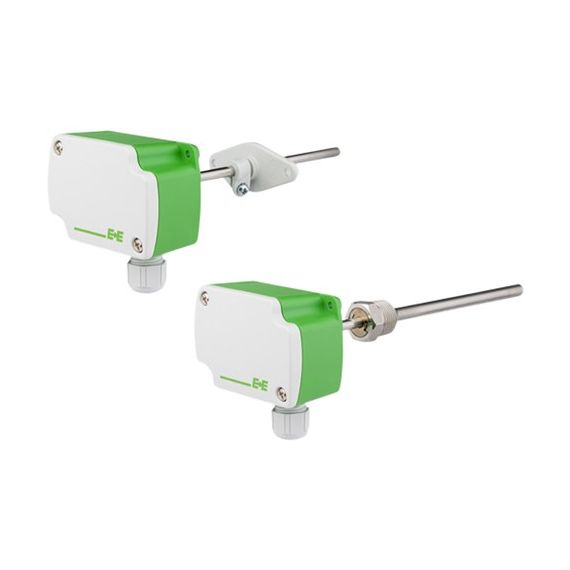

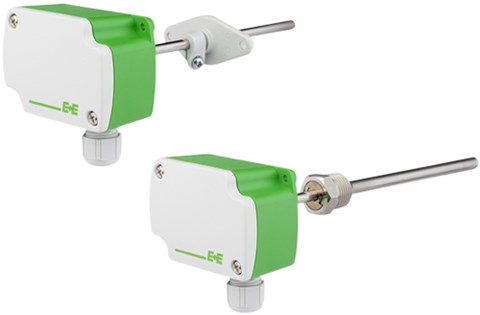

The E+E EE431 Temperature Sensor is used for air temperature measurements in heating, ventilation and air conditioning systems. It can be installed either with mounting flange or via external mounting holes at the enclosure (duct sensor). For temperature measurements in liquids the temperature sensor EE431 is mounted with an immersion well (immersion sensor).
In addition to active outputs 0 to 10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement. The innovative IP65 housing and the mounting concept allow for fast and easy installation.
Applications for the EE431 include:
- Building automation
- Process and climate control
- Measurement in air and liquids
