E+H iTEMP TMT162 Temperature Field Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Resistance temperature detector
- Universal input usable with:
- Resistance thermometer (RTD)
- Thermocouple (TC)
- Resistance thermometer (Ω)
- Voltage transmitters (mV)
- Diagnostics information according to NAMUR NE107
- International approvals such as FM, CSA, ATEX
- SIL certification as per IEC 61508:2010
- Galvanic isolation 2 kV (sensor input / current output)
- FOUNDATION Fieldbus™ ITK 6.1.2
- PROFIBUS PA Profile 3.02
- Predecessor: TMD833, iTEMP FF TMT165
The E+H iTEMP TMT162 Temperature Field Transmitters monitor, convert and display input signals. The TMT162 feature high accuracy, reliability and long term stability in critical processes. The remote configurable transmitter monitors and transfers converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART, FOUNDATION Fieldbus, PROFIBUS PA communication.

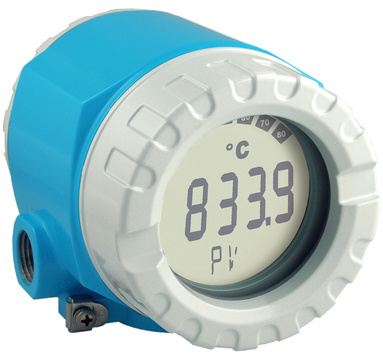

The display shows large measured values, bar graph and status indication. The diagnostics information is in compliance with NAMUR NE107. Optional international approvals include FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof). The universal input is usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
