E+H iTEMP TMT86 Head Mount Temperature Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Input: 1 x RTD/TC or 2 x RTD/TC for redundancy
- Output: PROFINET/Ethernet-APL
- Accuracy: Pt100, -50 to 200°C <= 0.1K (-58 to 392°F <= 0.18°F)
- Sensor-transmitter matching
- Auxiliary power supply:
- 9.6 to 15V DC (Ethernet-APL)
- 20 to 30V DC (SPE)
- Installation: terminal head form B / in field

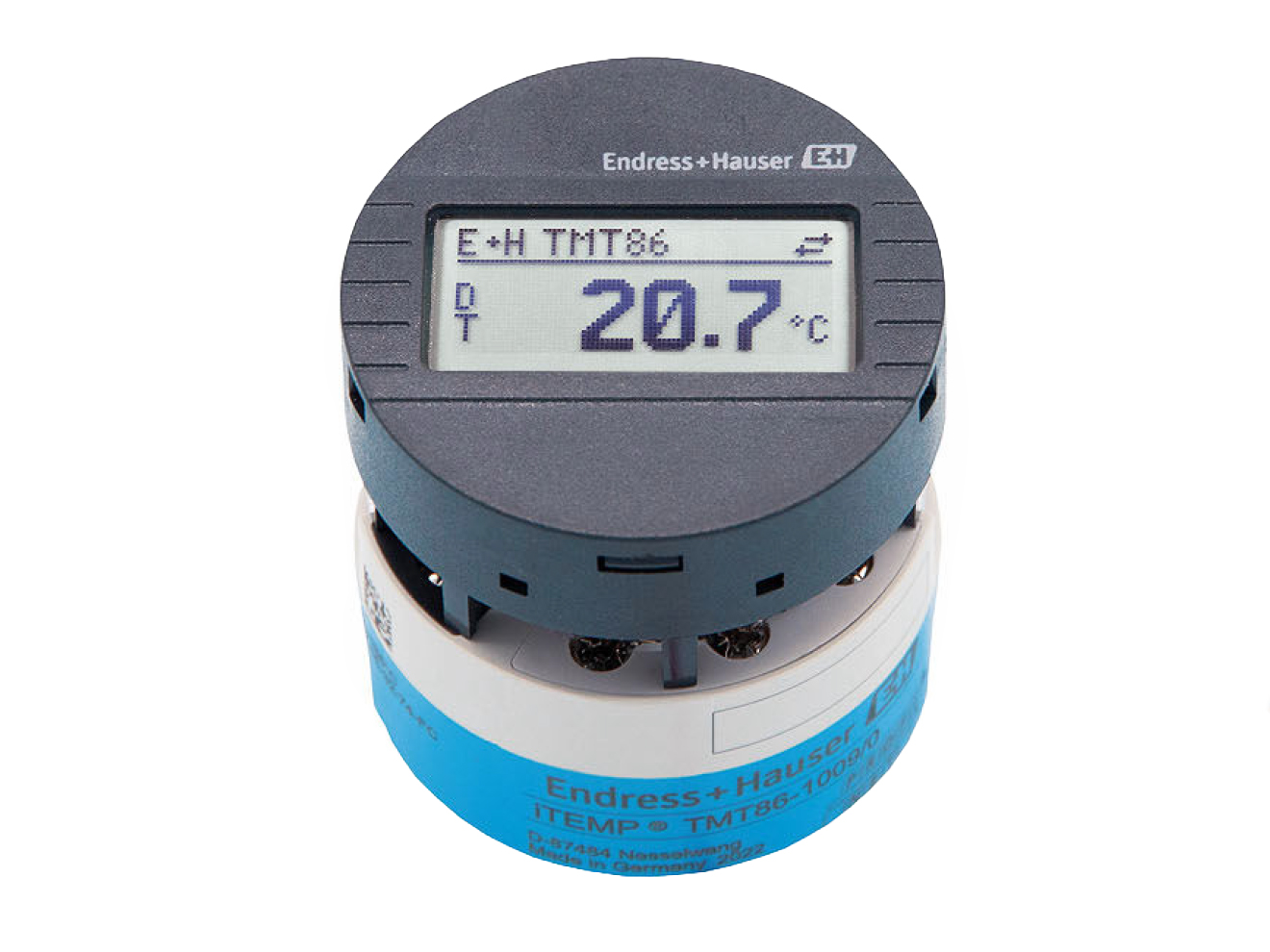

- Optional E+H TID10 Transmitter Display Head
- Screw/push-in terminals
- Galvanic isolation
- Certifcation(s):
- ATEX, ATEX IECEx, CSA C/US, CSA XP, EAC Ex, IECEx, KC Ex, INMETRO, NEPSI, UK Ex

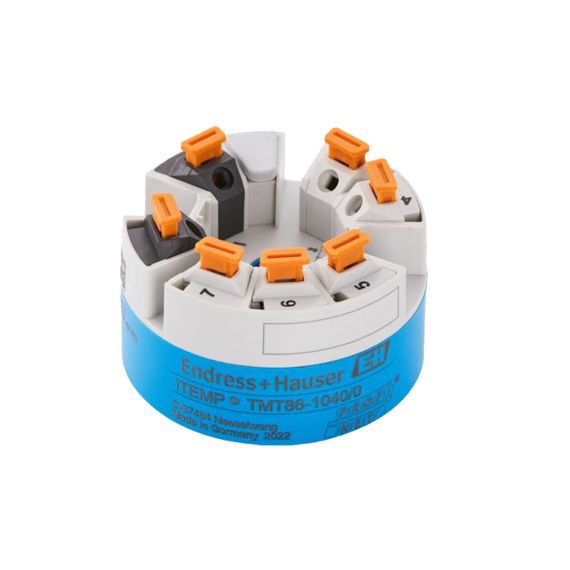

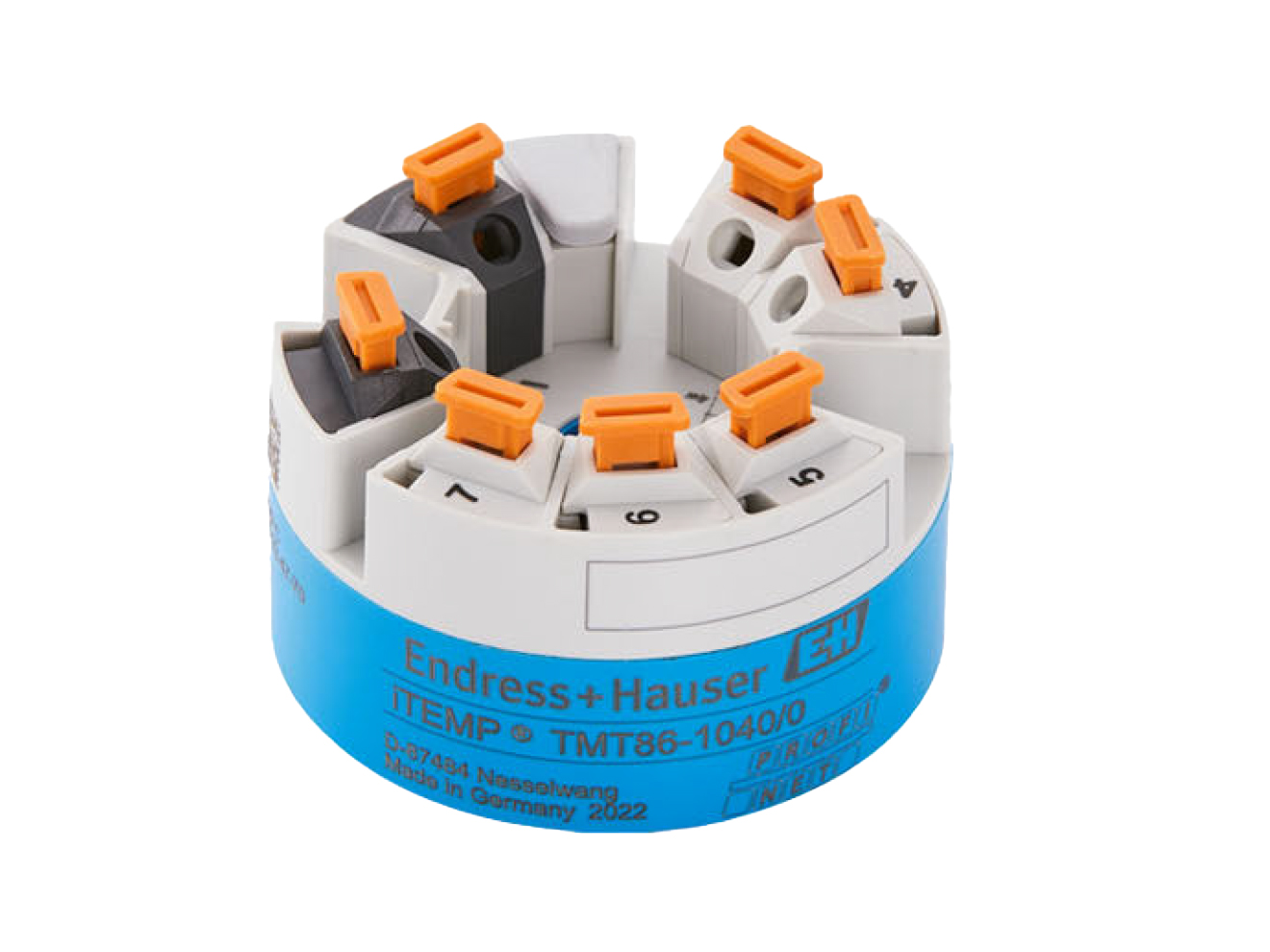

The E+H iTEMP TMT86 Head Mount Temperature Transmitter is a PROFINET enabled dual-channel device, that not only converts signals from RTD sensors and thermocouples, but transfers resistance and voltage signals via Ethernet as well. Highly accurate readings are supported via sensor-transmitter matching.

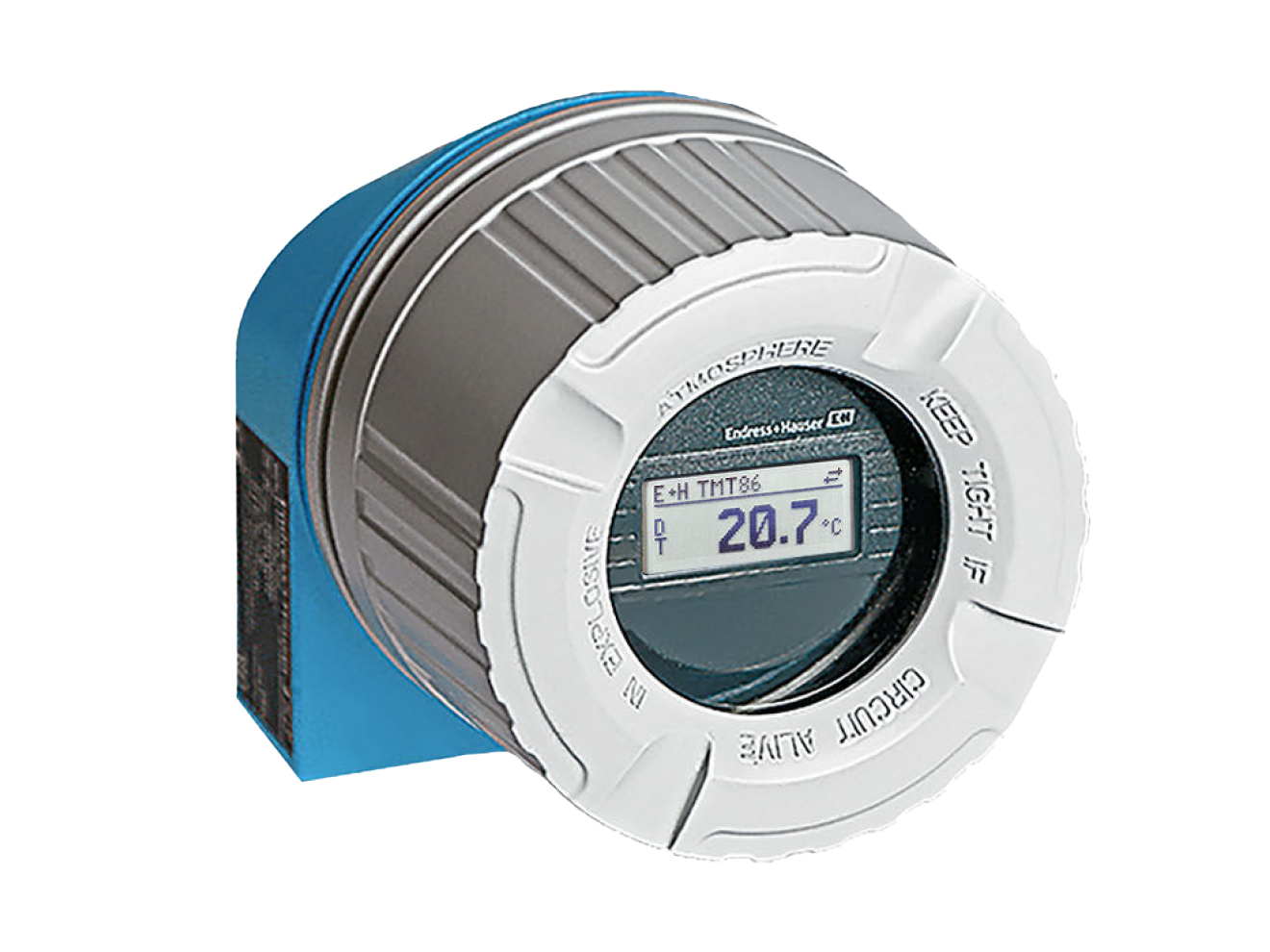

Standard diagnostic functions of the TMT86 include corrosion detecting (NAMUR NE89), incorrect wiring, internal device errors, overrange/underrange detection, and out-of-range ambient temperature detection. The two channels are galvanically isolated, with measured values able to be displayed on-site through configuration with the E+H TID10 Transmitter Display Head. A wide range of field housings with or without display windows are also available for Ex d environmental needs. Hazardous area approvals offered through Zone 1.
