Features
- 3-port isolation
- 6.2mm bayed housing
- 24 VDC power supply
- Universal input
- MilliAmp or voltage output
- Switchable service functions
- DIN Rail-mount
- EN 61140

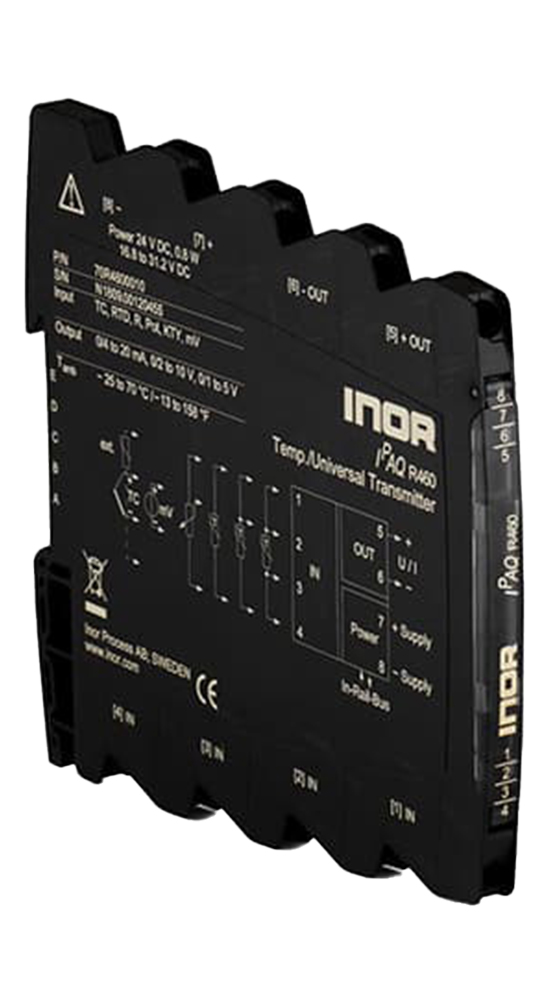

INOR IPAQ R460 temperature transmitter is a programmable 4-wire (separately powered) transmitter. It converts RTD and thermocouple sensor signals as well as potentiometer, resistor and mV signals to isolated DC mA and voltage signals. The commissioning function, which can be switched on at the front, generates a reference signal at the output with which the subsequent signal path can be tested and adjusted. The power supply can be supplied via the connection terminals or via the In-Rail-Bus connector. The supply voltage and error status are indicated by LEDs on the front of the unit.
It is possible to configure IPAQ R460 with DIP switches (fixed ranges) or with the software INOR-Set (any range within specification ratings). With INOR-Set, IPAQ R460 can be configured via PC and the data records can be stored and documented. An additional power supply is not necessary during PC configuration.
