FLIR ETS320 Benchtop Thermal Imager
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- -4 to 482°F (-20 to 250°C) temperature range
- ±3% measurement accuracy
- Vibrant 3in LCD display
- 45° field of view
- 9Hz image frequency
- 70mm ±10mm fixed focus distance
- Records standard radiometric JPEGs

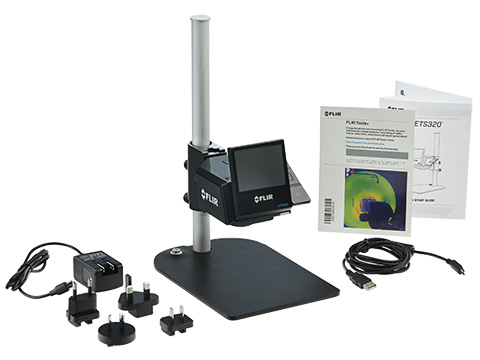

The FLIR ETS320 benchtop thermal imager is designed for testing and evaluating laboratory electronics. The ETS320 immediately identifies the presence of heat, either as a hot spot or thermal gradient, which can indicate potential points of failure within a system. This information can be used to determine where and when to add fans and heat syncs to ensure that instruments and circuit boards are operating within range for a maximum lifetime.
The high accuracy of this camera is ideal for quality assurance, factory acceptance testing, and failure analysis. It features a true 45° field of view for broad initial scans to reveal the potential problem. It can detect minute temperature shifts smaller than 0.06°C, and measure small components down to 170µm per pixel spot size.

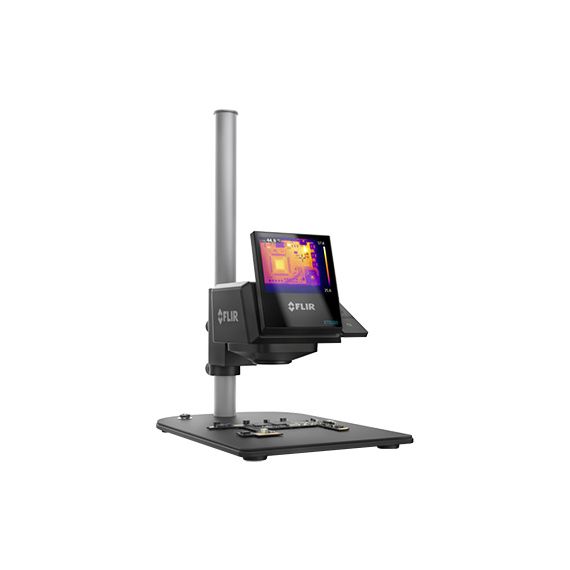

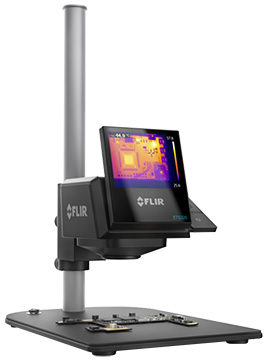

The ETS320 is ergonomically designed for benchtop use. The microscope-style stand can adjust to different heights in order to magnify smaller components or zoom out to read a larger area. It can plug directly into your PC or laptop to view a live image on a larger screen for advanced analysis.
