Optris PI 640i Microscope Kit MO2X: 5.4 x 4.0mm lens (F=1.3) / f=60mm/ -20 to 500°C / 2x microscope lens/ Min spot (IFOV): 8µm
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Lens |
|---|---|---|---|
$36,49750
|
In stock
|
OPTPI64ILTMO2XT050
|
Lens:
|
|
$27,62500
|
In stock
|
OPTPI64ILTMO44T090
|
Lens:
|
Features
- Optical resolution:
- 640 x 480 pixels at 32Hz
- 640 x 120 pixels at 125Hz
- Temperature range(s):
- MO44: –20 to 900°C
- MO2X: -20 to 500°C
- Thermal sensitivity (NETD): 80mK
- Detector: FPA
- Spectral range: 8 to 14µm
- Optics (FOV):
- MO44: 20.0 (0.78 in) x 14.0 mm (0.55 in) (F=1.1) / f= 44 mm (1.73 in)
- MO2X: 5.4 (0.21 in) x 4.0 mm (0.16 in) (F=1.3)/ f=60 mm (2.36 in)
- Motorized focus
- Accuracy: ±2°C or ±2% (whichever is greater)
- PC interface: USB 2.0
- Process interface (PIF):
- Standard: 0 to 10V input, digital input (max. 24V), 0 to 10V output
- Industrial (sold separately):
- 2 x 0 to 10V inputs, digital input (max. 24V)
- 3 x 0 to 10V output, 3x relay (0 to 30V / 400mA), fail-safe relay
- Enclosure size:
- MO44: 46 x 56 x 119 to 126mm (depending on focus position)
- MO2X: 52 x 59 x 139mm
- Certifications/approvals: IP67, NEMA 4, CE, UKCA, RoHS, EMC, IEC 60068-2-17/6/64

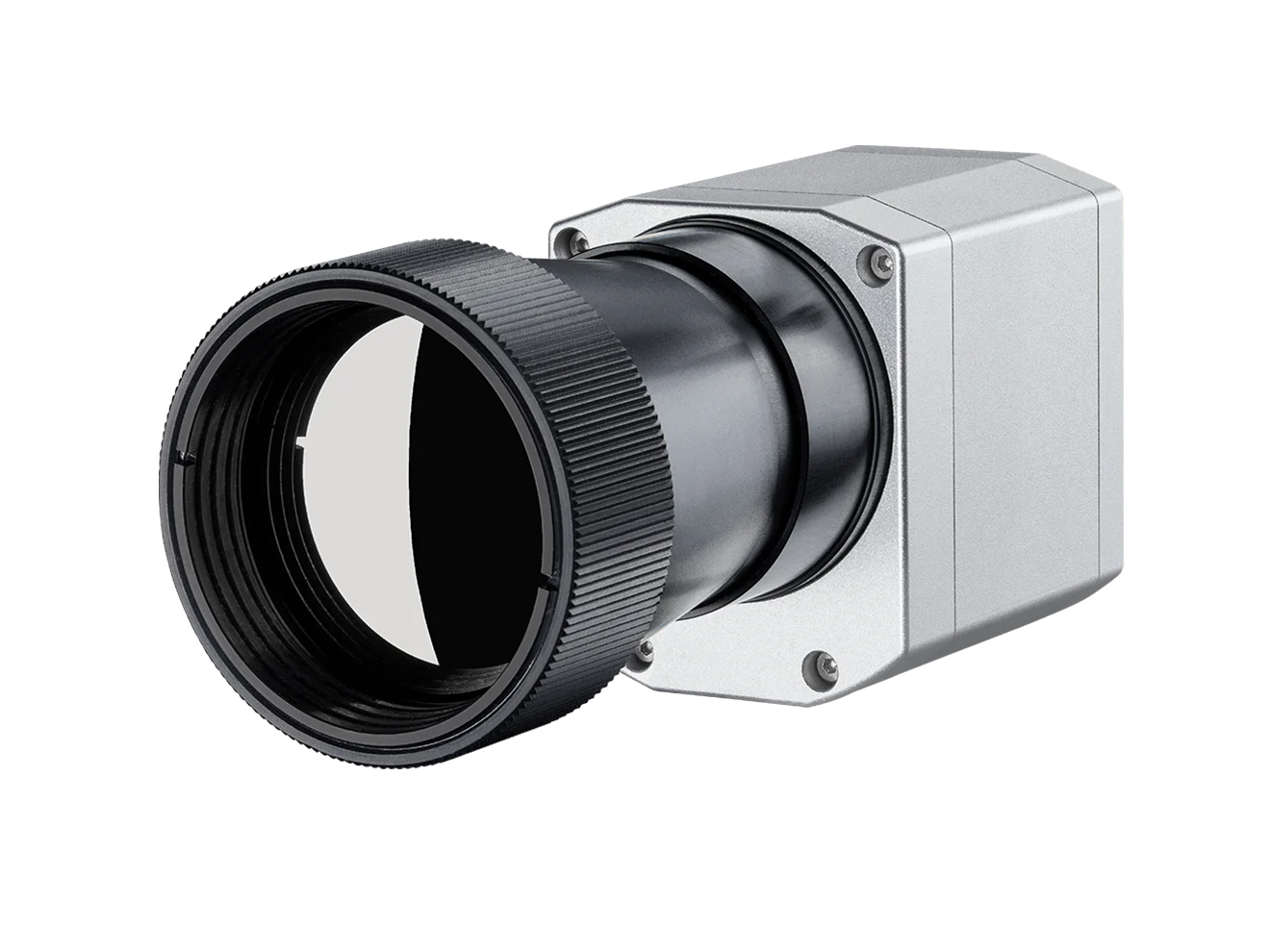

The Optris PI 640i Microscope Kit provides two iterations of an an advanced thermal imaging camera configured with a USB 2.0 interface, a FPA detector with a high resolution of 640 x 480 pixels, and a measurement range up to 900°C (with subranges). Thermal sensitivity is 80mK.

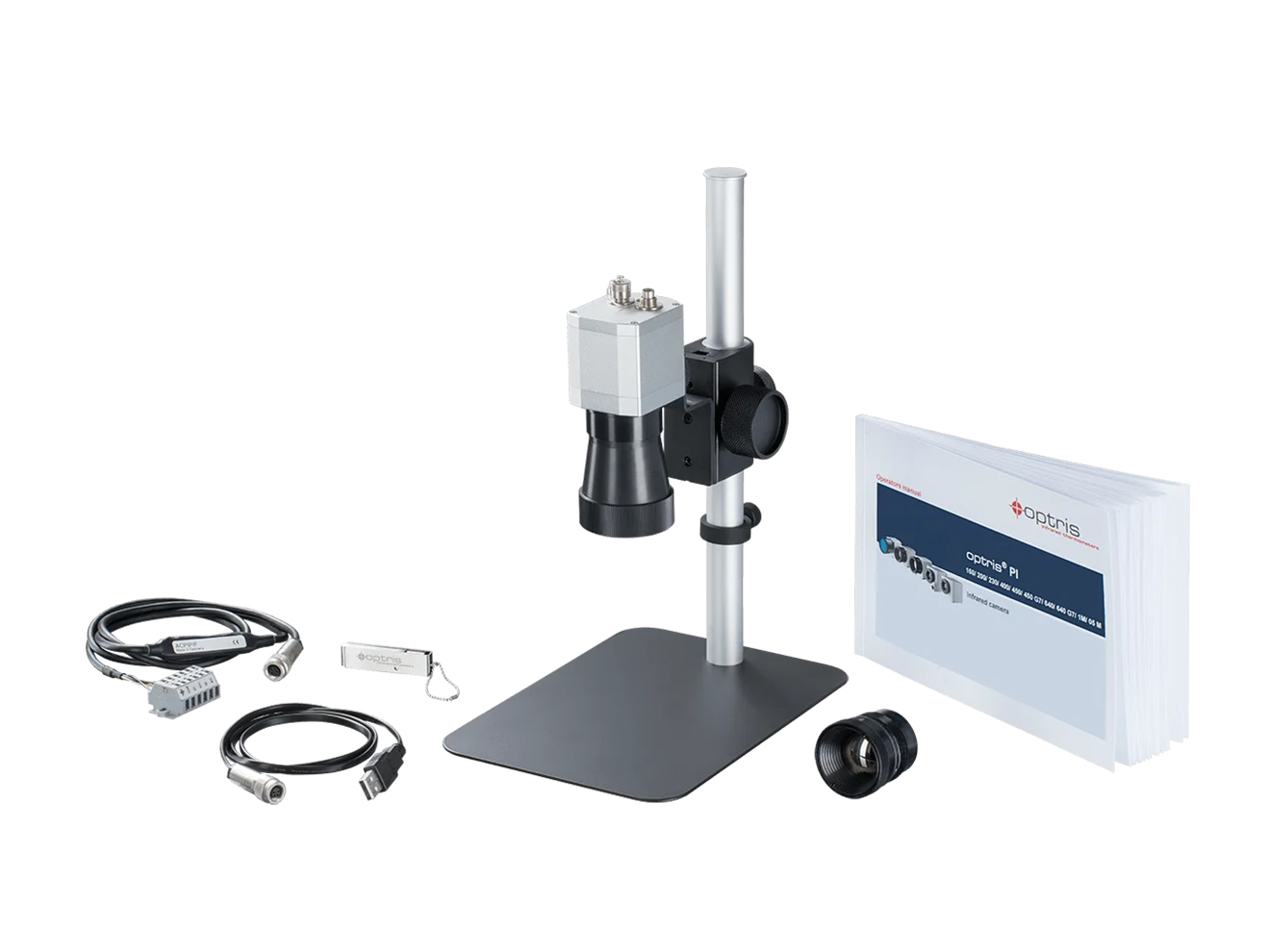

The MO44 configuration of this kit is centered around a 12° x 9° lensed PI 640i infrared camera. This lens has a -20 to 900°C measuring range, F value of 1.1, focal length of 44mm, and an IFOV of 28µm. This kit includes a manual PI camera, microscope stand, USB cable (1m), and rugged transport case.

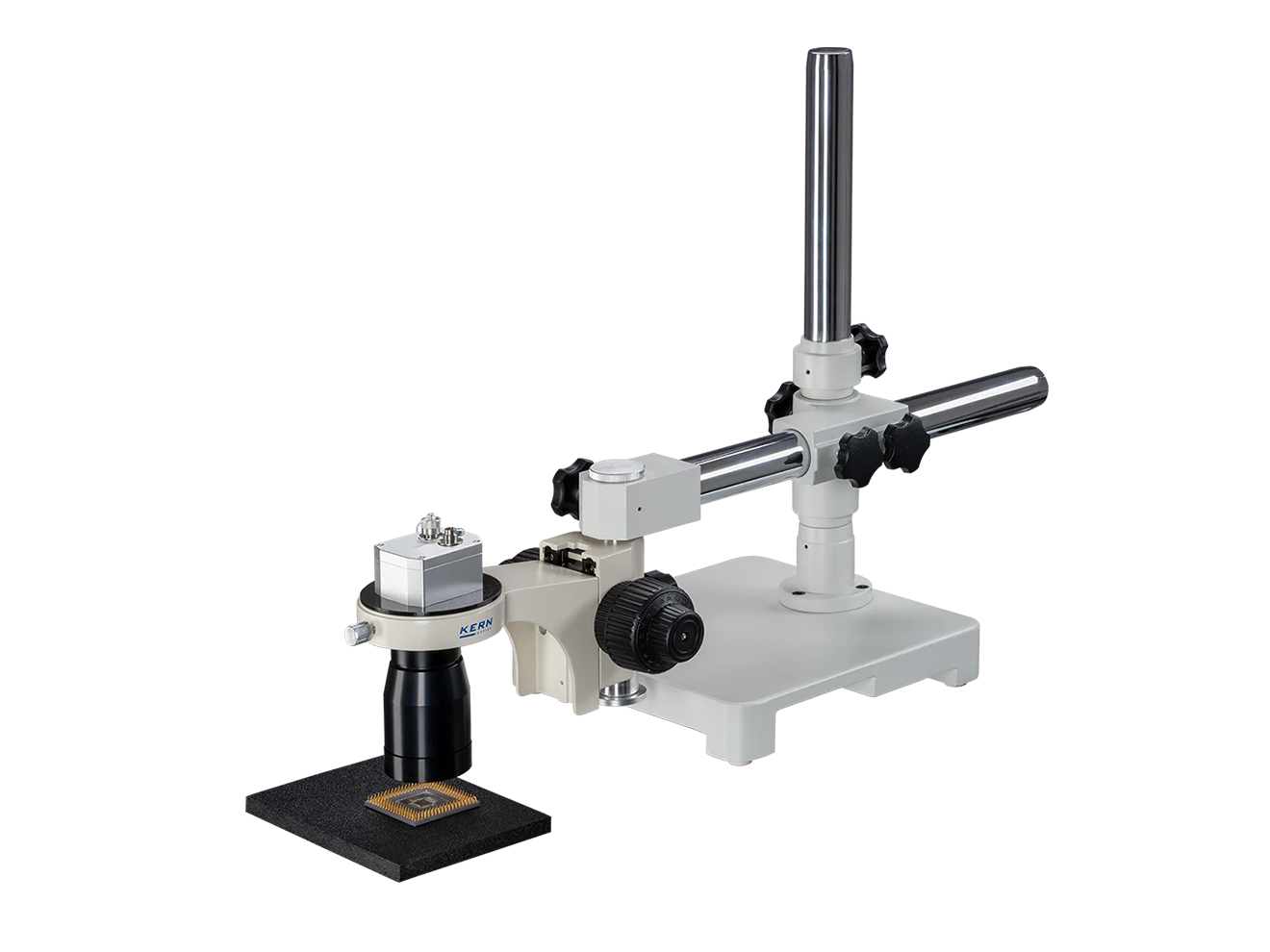

The MO2X configuration of this kit is centered around a 5.4 x 4.0mm lensed PI 640i infrared camera. This lens has a -20 to 500°C measuring range, F value of 1.3, a focal length of 60mm, and an IFOV of 8µm. This kit includes a manual PI camera, a premium microscope stand with coarse/fine drive and adapter for camera, base plate with ESD pad, USB cable (1m), and rugged transport case.
Frame rates up to 125Hz allow for inspection of pulsed laser diodes and similarly fast processes. Thermal analysis of tiny chip-sized components, as well as general circuit board assessments is streamlined through hands-free operation and testing with these fully equipped kits, each with license-free access to PIX Connect Thermography Software. Each camera comes in an IP67 (NEMA 4) rated housing enclosure with vibration and shock protections, providing durability along with a highly accurate, compact design.
This unit is also compatible with the following Optris products:
- DewesoftX: Data acquisition and signal processing software.
Contact Instrumart for further details and pricing on these optional software packages.
