Optris Xi 640 Infrared Camera 22° x 17° lens / f=20mm / -20 to 900°C
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Lens |
|---|---|---|---|
$11,37500
|
In stock
|
OPTXI64LTO22T090
|
Lens:
|
|
$11,37500
|
In stock
|
OPTXI64LTO36T090
|
Lens:
|
|
$11,37500
|
In stock
|
OPTXI64LTO65T090
|
Lens:
|
Features
- Optical resolution: 640 x 480 pixels
- Temperature range(s):
- –20 to 100°C
- 0 to 250°C
- 150 to 900°C
- Thermal sensitivity (NETD): 80mK
- Detector: FPA, uncooled (12µm pitch)
- Spectral range: 8 to 14µm
- Frame rate: 32Hz
- Optics (FOV):
- 22° x 17° (f = 20mm)
- 36° x 26° (f = 12.7mm)
- 65° x 45° (f = 7.7mm)
- Motorized focus
- Accuracy: ±2°C or ±2% (whichever is greater)
- PC interface: USB 2.0 / optional USB to GigE (PoE) conversion
- Process interfaces (PIF): 0 to 10V input, digital input (max. 24V), 0 to 10V output
- Ambient temperature range: 0 to 50°C
- Power supply: USB connection
- Certifications/approvals: IP67, NEMA 4, CE, UKCA, RoHS, EMC, IEC 60068-2-17/6/64

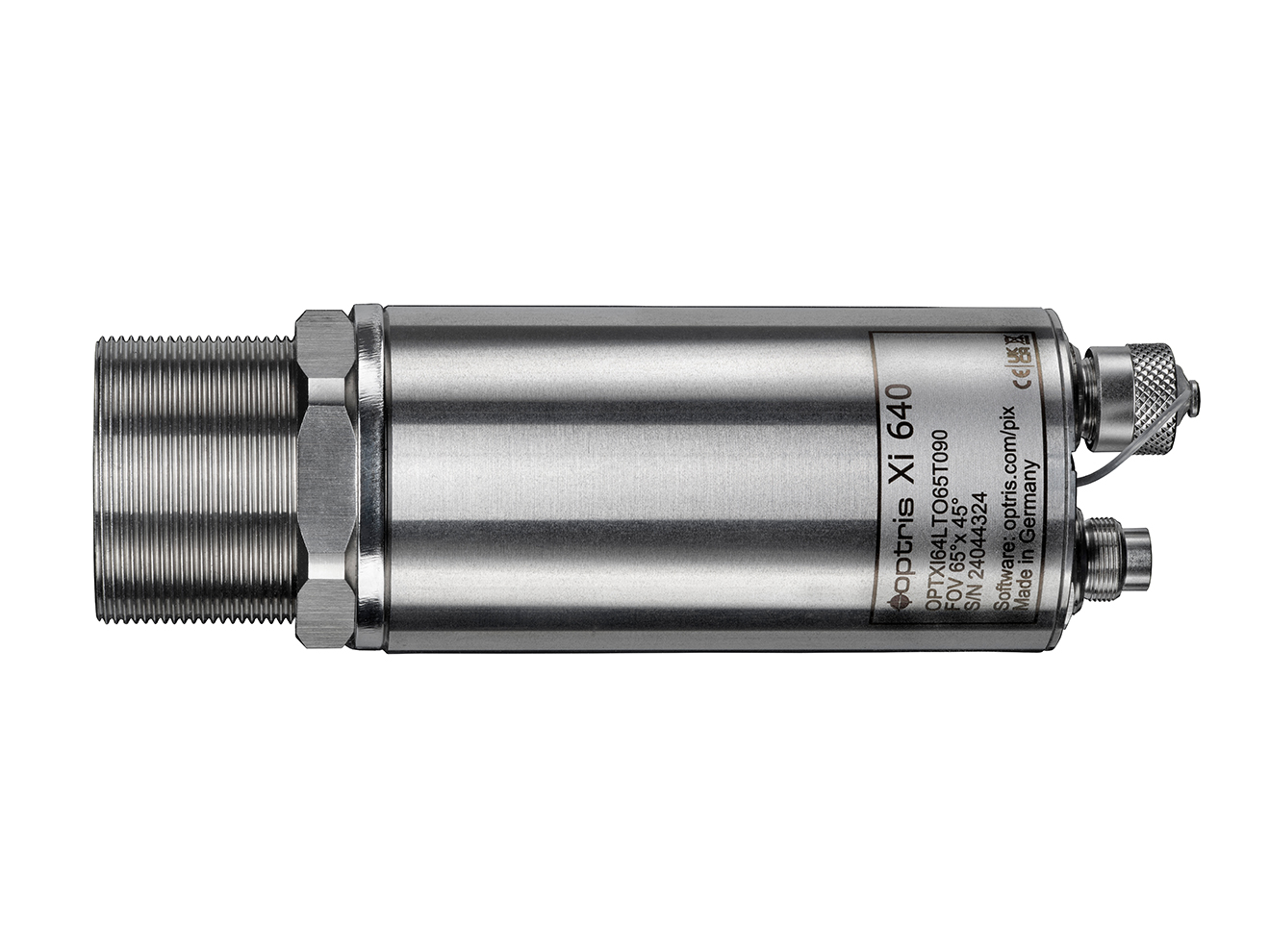

The Optris Xi 640 Infrared Camera is a non-contact thermal imaging unit configured with a USB 2.0 interface, a FPA detector with a high resolution of 640 x 480 pixels, and a measurement range of -20 to 900°C (with subranges). Thermal sensitivity is 80mK. The lens comes in optic configurations of 22° x 17°, 36° x 26° or 65° x 45°, with focal lengths of 7.7 to 20mm.
The motorized focus and hot spot finder allow the Xi 640 to provide accurate, consistent readings and adaptability in various industrial environments. Extensive analysis of results, alarm setting, and download of configuration files over the internet is facilitated via free access to the PIX Connect Thermography Software package.

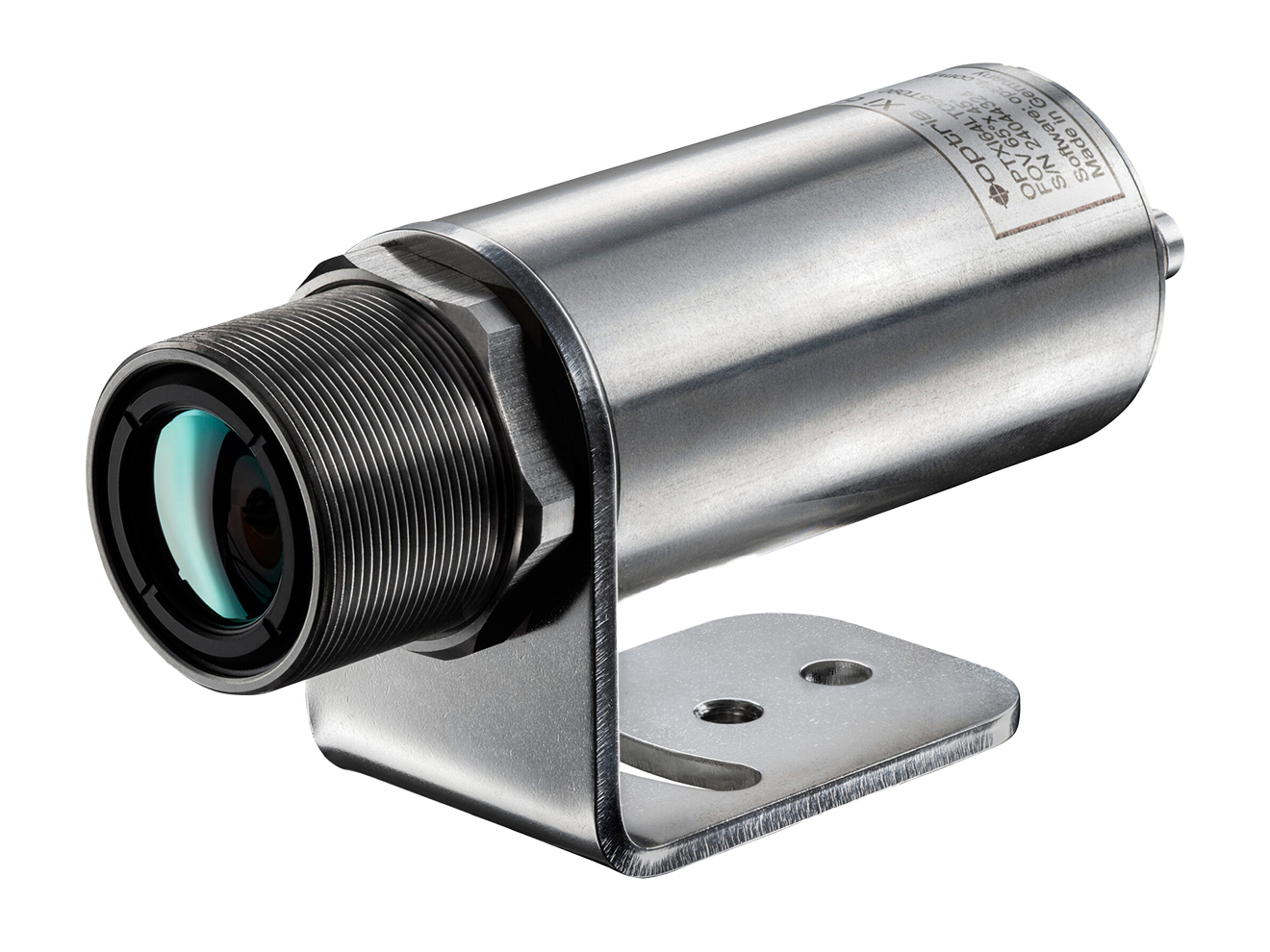

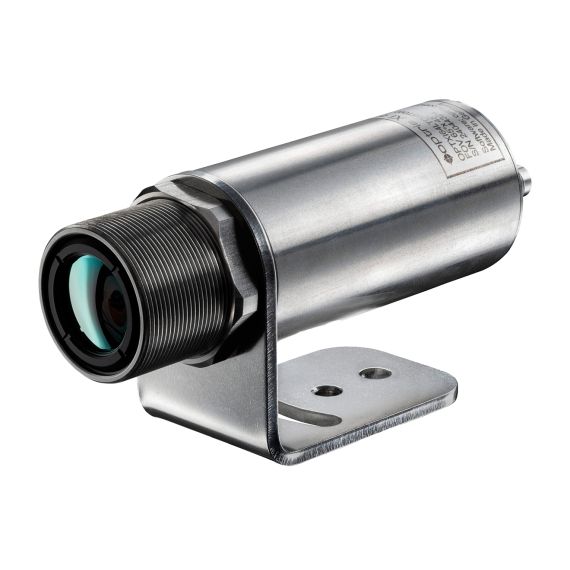

The Xi 640 is housed within a compact, IP67 (NEMA 4) rated stainless steel enclosure with shock and vibration protections, making it well equipped for non-contact thermal imaging in various industrial environments.
This unit is also compatible with the following Optris products:
- IRmobile App: Integrate your unit with an Android smartphone or tablet.
- DewesoftX: Data acquisition and signal processing software.
Contact Instrumart for further details and pricing on these optional software packages.
