WIKA CTI5000 Infrared Calibrator 230 VAC
CTI5000-V-ZZ
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Voltage |
|---|---|---|---|
$21346
|
In stock
|
CTI5000-U-ZZ
|
Voltage:
|
|
Contact us for a price
|
In stock
|
CTI5000-V-ZZ
|
Voltage:
|
Features
- 122 to 932°F (50 to 500 °C) application range
- Stability:
- ±0.1 K to 212°F (100°C)
- ±0.2 K to 662°F (350°C)
- ±0.4 K to 932°F (500°C)
- 0.95 emissivity
- 2.24 in (57 mm) diameter of the measuring surface
- Heating time: 30 min from ambient to 932°F
- Cooling time: 40 min from 932 to 212°F

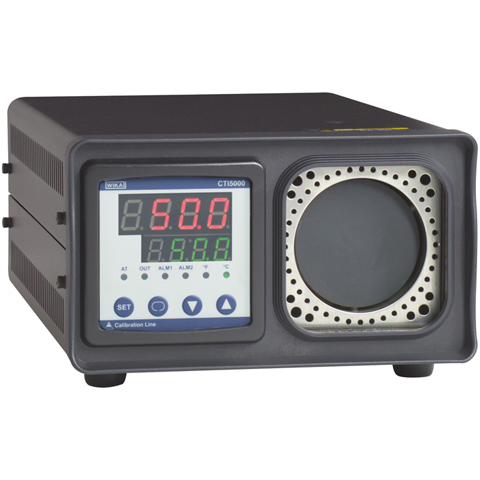

The WIKA CTI5000 Infrared Calibrator is suitable for temperatures up to 932°F (500°C). Due to its stability, the new portable infrared calibrator is particularly suited to the calibration of infrared hand-held thermometers. The black body has a large diameter so that a wide variety of infrared thermometers can be tested, no matter which lenses are fitted. The emissivity is fixed at 0.95 and the temperature can be controlled in steps of 0.1 °C. To check the black body, there is a bore located directly behind the surface so that the measurement can be made with contact and the quality monitored.
Applications for the CTI5000 include:
- Testing and calibration of non-contact temperature measuring instruments
- Heating source for on-site laboratories for the calibration of infrared thermometers
- On-site calibration
