Features
- 1/2in NPT head connection thread
- 500mm (19.69in) maximum standard immersion
- Conical or tapered tip shape
- -328 to 1292 °F (-200 to 700°C) temp range
- Collar flange
- Vanstone type

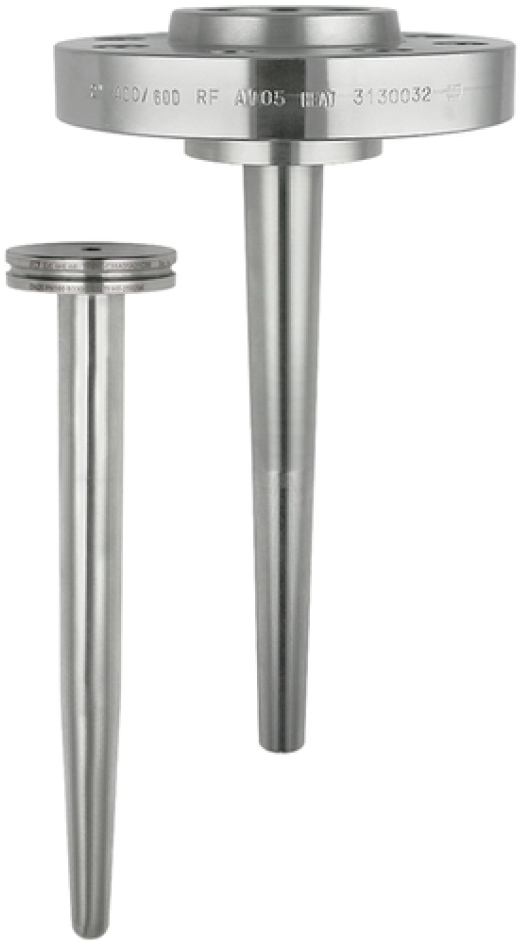

The E+H TT511 Industrial Thermowell is specially designed for thermometer installations. The thermowell shaft and the process connection flange are not interconnected. For installation, the collar of the thermowell is fitted between two flanges; on the one hand it is fitted onto the thermowell and on the other hand it is bolted to the connection nozzle on the process side. Many different flange versions are available to secure the unit to the permanently installed nozzle flange. It is machined from solid bar stock.
