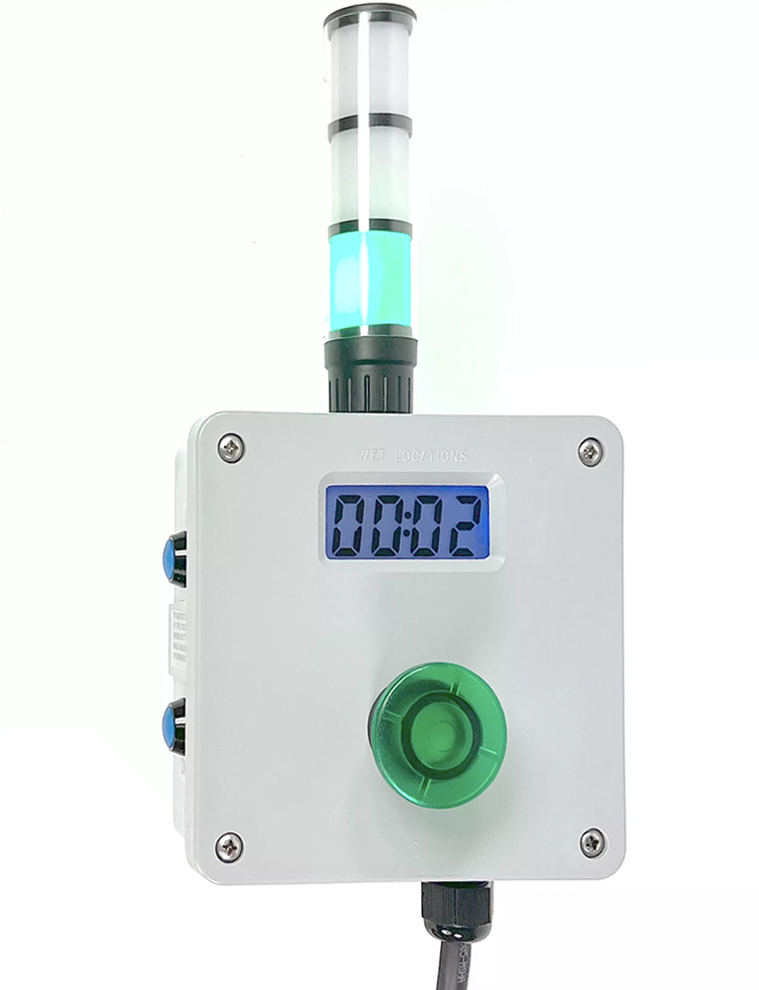

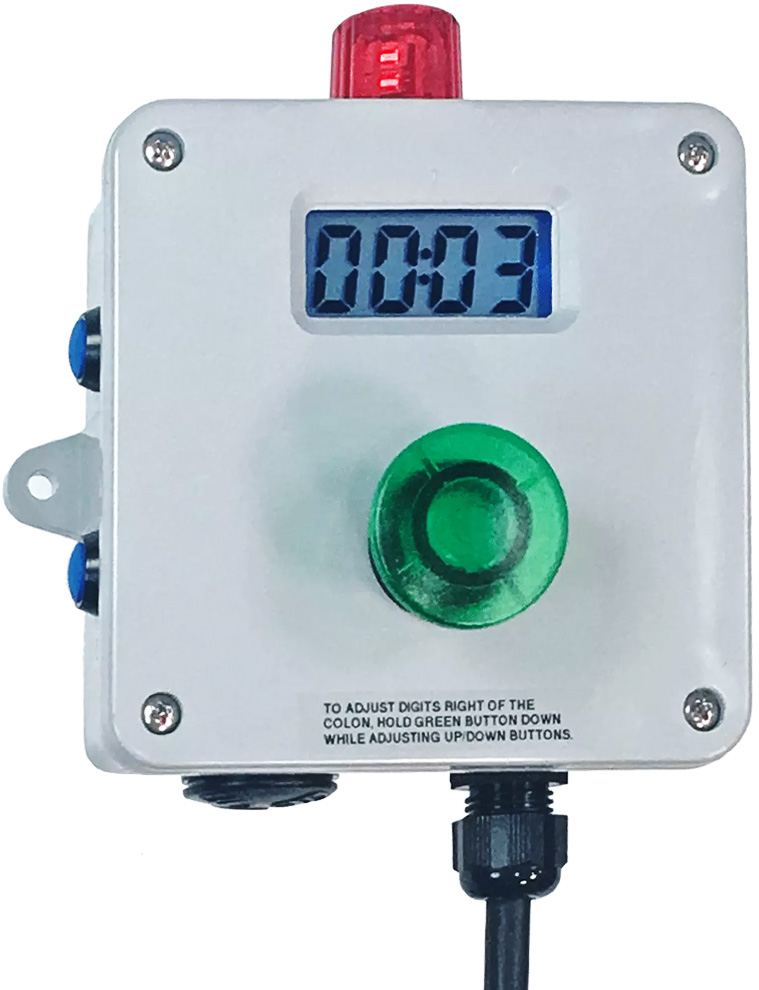

Gizmo Engineering T5 AC Powered Digital Production Cycle Timer Outside and inside the enclosure No stack light, red LED beacon included
T5
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Time-Setting Button Location | Sort by Stack Light |
|---|---|---|---|---|
$43290
|
In stock
|
T5X
|
Time-Setting Button Location:
|
Stack Light:
|
|
$43940
|
In stock
|
T5
|
Time-Setting Button Location:
|
Stack Light:
|
|
$43940
|
In stock
|
T5-S3
|
Time-Setting Button Location:
|
Stack Light:
|
|
$43940
|
In stock
|
T5-S2
|
Time-Setting Button Location:
|
Stack Light:
|
Features
- ±0.1% timing accuracy
- ±0.001% timing precision
- -40 to 50°C temperature range
- 103dB sound pressure level at 2 feet
- Power consumption:
- 30mA power when alarming
- 11µA power when not alarming
- 18mm digits for visibility at a distance
- Two timing ranges: 99 minutes or 99 hours
- Strobing beacon LED or stack light available
- IP68 ingress rating
The Gizmo Engineering T5 AC Powered Digital Production Cycle Timer is designed to be connected to switches and automate industrial processes. The T5 can be programmed to a maximum time of 99 minutes or hours with the two blue side buttons (if included) and features interior DIP switches to change timer modes or set the timer on models without exterior set buttons.
In the default mode of the T5, the green button is used to start and stop the time. Once the countdown time reaches zero, the timer then counts the overrun upwards so you know how long the timer has been alarming. Pressing the green button again cancels the alarm. See the documents tab for information about the 12 different timer modes that can be implemented with this model.
