Bently Nevada SCOUT200-IS Condition Monitor 2 channels
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Channels |
|---|---|---|---|
Contact us for a price
|
In stock
|
SCOUT220IS-05
|
Channels:
|
|
Contact us for a price
|
In stock
|
SCOUT240IS-05
|
Channels:
|
Features
- Intrinsically Safe (IS) hazardous-rated portable data collector
- 2 sensor input channels
- Accelerometer, Velocity & displacement compatible
- AC coupled range: 16 V peak-peak
- DC coupled range: 0 to 20 V, -10 to 10 V, -20 to 0 V
- Accuracy ±(0.1% + 1cpm)
- Frequency range 25 to 40,000 Hz
- Bluetooth communication

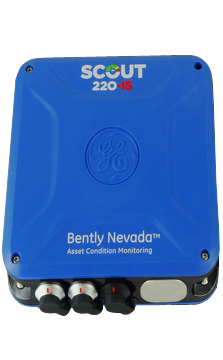

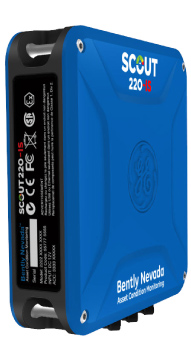

The Bently Nevada SCOUT200-IS Condition Monitor is an intrinsically safe portable data collector solution designed for hazardous environments. You can use this small form-factor, rugged device to take vibration recordings and upload the collected data for detailed analysis in Bently Nevada's System 1 Evolution (offered separately from Bently Nevada).
The overall system consisting of the data collector and the industrial handheld is rated ATEX Zone 1 / Zone 21 for non conductive dust, and CSA Class 1 Zone 1. The SCOUT200-IS data collector also gives you access to sites requiring hot work permits.
The data collector uses Bluetooth to communicate with the industrial handheld which is also rated for hazardous environments. The S1 Collector app exchanges data with System 1 Evolution via Wi-Fi or a cellular network.
