Wilcoxon Sensing Technologies 736 Series Miniature High Frequency Accelerometer Side exit connector

CODE:

Write a review

$704⁰⁰

In stock

Model:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Model
$704⁰⁰	In stock + −	736	Model: Side exit connector
$720⁰¹	In stock + −	736T	Model: Top exit connector

Features

Dynamic vibration (IEPE) sensor output
100mV/g sensitivity
±5% sensitivity tolerance
50g peak acceleration range
Frequency response:
- ±5%: 5 to 15,000Hz
- ±3 dB: 2 to 25,000Hz
60Hz resonance frequency
150Ω max output impedance
500g peak vibration limit
5,000g peak shock limit

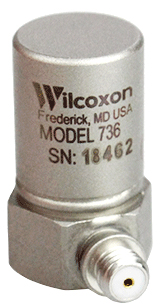

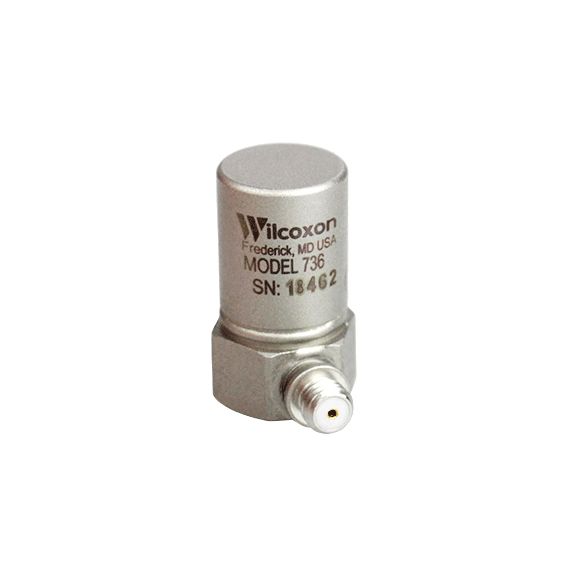

The Wilcoxon Sensing Technologies 736 series miniature high frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 10-32 UNF tapped hole for mounting with SF1 stud (included), a 10-32 coaxial output connector, and an R1 mating connector. The 736 model has a side exit connector, and the 736T model has a top exit connector. The 736 is case grounded and manufactured in an ISO 9001 facility.

High frequency accelerometers are used on machinery with gear mesh or small bearings, such as high-speed machine tool spindles and compressors. At high frequencies, there is little vibration in terms of displacement and velocity, however tremendous amounts of acceleration amplitudes may be present.
