Home/Vibration Monitoring/Wilcoxon Sensing Technologies 799 Series Ultra-Low Noise Filtered Accelerometer 1V/g sensitivity, 5g peak acceleration range

Wilcoxon Sensing Technologies 799 Series Ultra-Low Noise Filtered Accelerometer 1V/g sensitivity, 5g peak acceleration range

CODE:

Write a review

$992⁰⁰

In stock

Model:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Model
$992⁰⁰	In stock + −	799M	Model: 1V/g sensitivity, 5g peak acceleration range
$864⁰¹	In stock + −	799LF	Model: 500 mV/g sensitivity, 10g peak acceleration range

Features

Dynamic vibration (IEPE) sensor output
Sensitivity:
- 799LF: 500mV/g
- 799M: 1V/g
±5% sensitivity tolerance
Peak acceleration range:
- 799LF: 10g
- 799M: 5g
1% amplitude nonlinearity
Frequency response:
- 799LF:
  - ±5%: 0.3 to 1,200Hz
  - ±10%: 0.2 to 1,600Hz
  - ±3 dB: 0.1 to 2,500Hz
- 799M:
  - ±5%: 0.3 to 1,200Hz
  - ±10%: 0.2 to 1,600Hz
  - ±3 dB: 0.1 to 2,500Hz
18kHz resonance frequency
400Ω max output impedance
250g peak vibration limit
5,000g peak shock limit
Hermetic sealing
MIL-C-5015 2-pin connector

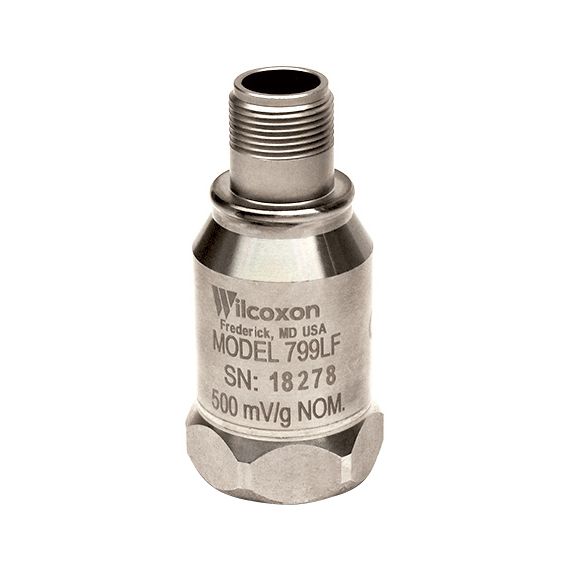

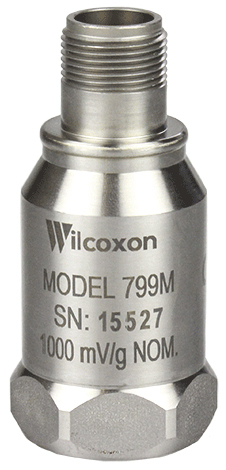

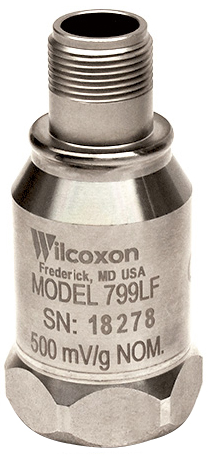

The Wilcoxon Sensing Technologies 799 series ultra-low noise filtered accelerometer is designed for long-term, reliable use. The 799LF has 500mV/g sensitivity and ±5% sensitivity tolerance. The 799M has 1V/g sensitivity and ±5% sensitivity tolerance. Both models have ultra low-noise electronics for clear signals at very low vibration levels and are low pass filtered to eliminate high frequencies.

The 799 is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 tapped hole for mounting and a MIL-C-5015 2-pin output connector. The 799 is case isolated and internally shielded. It is manufactured in an ISO 9001 facility.
