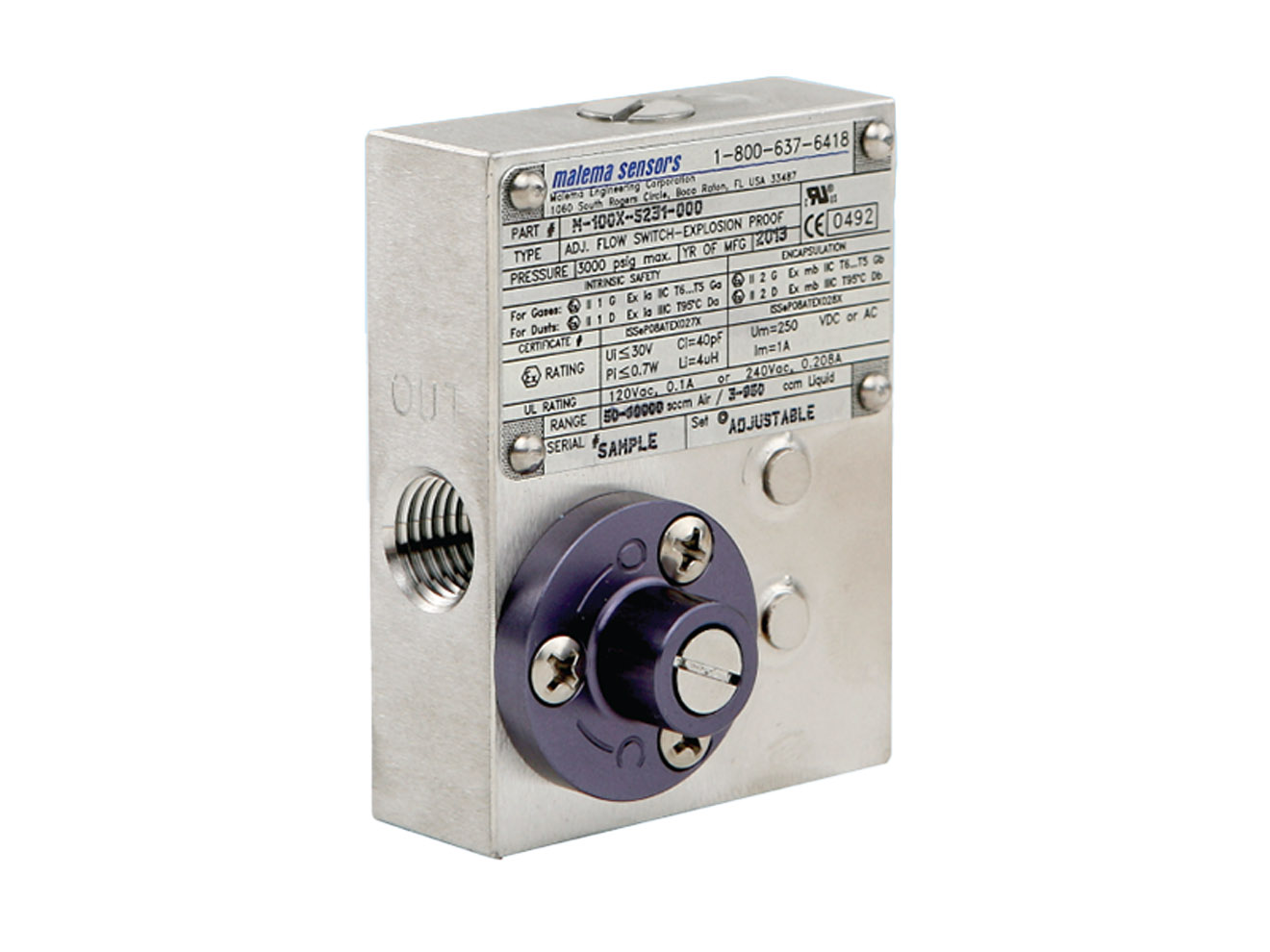

Malema M-100X Adjustable Flow Switch 17-300ml/min and 400-10,000 sccm FFKM Seals For Gas Applications and Custom Set Points, complete the flow switch application data sheet and return to Instrumart
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Set Point (Water and Air Increasing) | Sort by Seal Type | Sort by Gas Applications and Custom Set Points |
|---|---|---|---|---|---|
Contact us for a price
|
In stock
|
M-100X-S130-121-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S130-121-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
Contact us for a price
|
In stock
|
M-100X-S130-120-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S130-120-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
Contact us for a price
|
In stock
|
M-100X-S131-121-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S131-121-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
Contact us for a price
|
In stock
|
M-100X-S131-120-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S131-120-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
Contact us for a price
|
In stock
|
M-100X-S232-121-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S232-121-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
Contact us for a price
|
In stock
|
M-100X-S232-120-S001
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
|
$39000
|
In stock
|
M-100X-S232-120-S001[custom set point]
|
Set Point (Water and Air Increasing):
|
Seal Type:
|
Gas Applications and Custom Set Points:
|
Features
- Field adjustable
- For liquid or gases
- Low pressure drop
- UL recognized for hazardous location
- ATEX and IECEX certified for intrinsic safety and encapsulation and dust environment
- Set point accuracy: ±10% maximum
- Repeatability: ±2% maximum
- Hysteresis: ±15-30%
- Flow ranges:
- Air: 400-60,000 sccm
- Water 17-2000 ml/min
- Set point range for air is referenced at 14.7 psia and 70° F
- Set point range for water is referenced at 70° F
The M-100X adjustable flow switch is an extremely sensitive and explosion proof flow switch. It has been engineered to monitor vital sample flow parameters for instrumentation in process control and inert blanket gases. It is used as an auxiliary alarm monitor for flow meters and is suited for applications when installed on a bypass for determination of filter plugging. Available in 1/8" FNPT and 1/4" sizes with Stainless Steel as material options, the M-100X Flow Switch offers a water flow range of 17-2,000 ml/min and an air flow range of 400-65,000 sscm.
When there is no flow the free magnetic piston rests on the bottom of the bore. Process changes in the flow, relative to the variable orifice adjustment initiates the movement of the piston which is restored to its original position when there is a loss of flow. The movement of the piston actuates a sensitive reed switch which can be positioned to indicate a normally open or closed circuit, depending on the specific requirement. A counter-clockwise adjustment of the adjusting screw allows more flow through the bypass, effectively rendering a less sensitive flow switch. A clockwise adjustment of the adjusting screw reduces the bypass flow, redirecting the flow path to the main bore for a more sensitive flow switch.
Applications
- Gas and liquid analyzers
- Atmosphere furnaces
- CVD tools
- Vacuum systems
